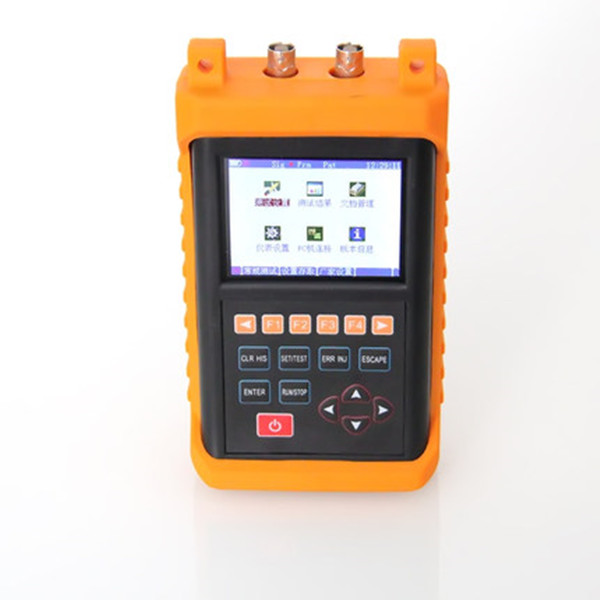

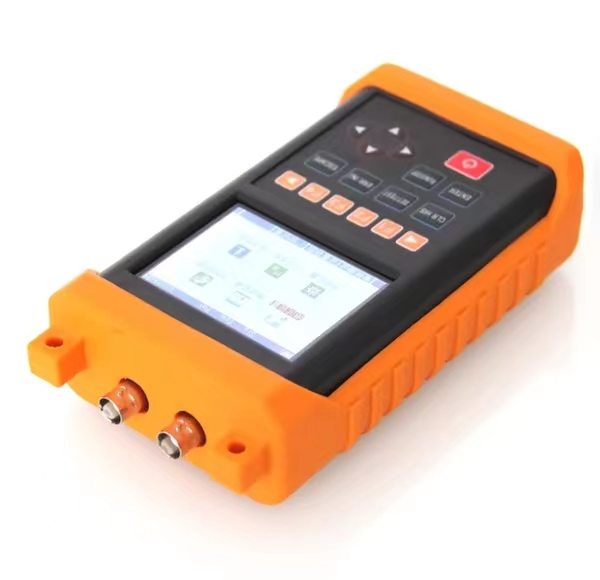

2Mbit/s Tester is a multi-functional and full- featured digital transmission system test device, designed for the installation test, engineering check and acceptance, daily maintenance of digital networks, mainly performing channel test, alarm analysis, fault finding and signaling analysis.
2Mbit/s Tester is a multi-functional and full- featured digital transmission system test device, designed for the installation test, engineering check and acceptance, daily maintenance of digital networks, mainly performing channel test, alarm analysis, fault finding and signaling analysis.
1. Features
● Handheld design and easy-to-use; High resolution backlight color TFT LCD screen
● Save/Recall of 7 user-defined setups and 7 sets of results
● Run and stop testing can be controlled automatically by timer
● Histograms analysis of alarm and error events
2. Functions
2M measurement
75Ω and 120Ω line interfaces
HDB3 and AMI line codes
Out-of-service 2Mb/s, N×64kb/s BER testing
In-service framed and unframed double-channel testing
“PCM simulator” mode testing
Frame data control and monitoring
Timeslot activity monitoring, FAS, N-FAS, TS16MFO analysis
Built-in 64kb/s tone channel listen capability
CAS and CCS signaling generation and monitoring
Extensive error and alarm generation
Level measurement
Frequency and offset measurement
Clock slip measurement
Up to ±999ppm transmit clock deviation
Clock source: Internal, Interface or External 2M clock/signal
3. Accessories List
|
Item |
Qts |
Item |
Qts |
|
Tester |
1 |
Certificate |
1 |
|
BNC-L9 Test Cable |
2 |
Warranty Card |
1 |
|
Manual |
1 |
Package |
1 |
|
AC Recharger |
1 |
|
|
