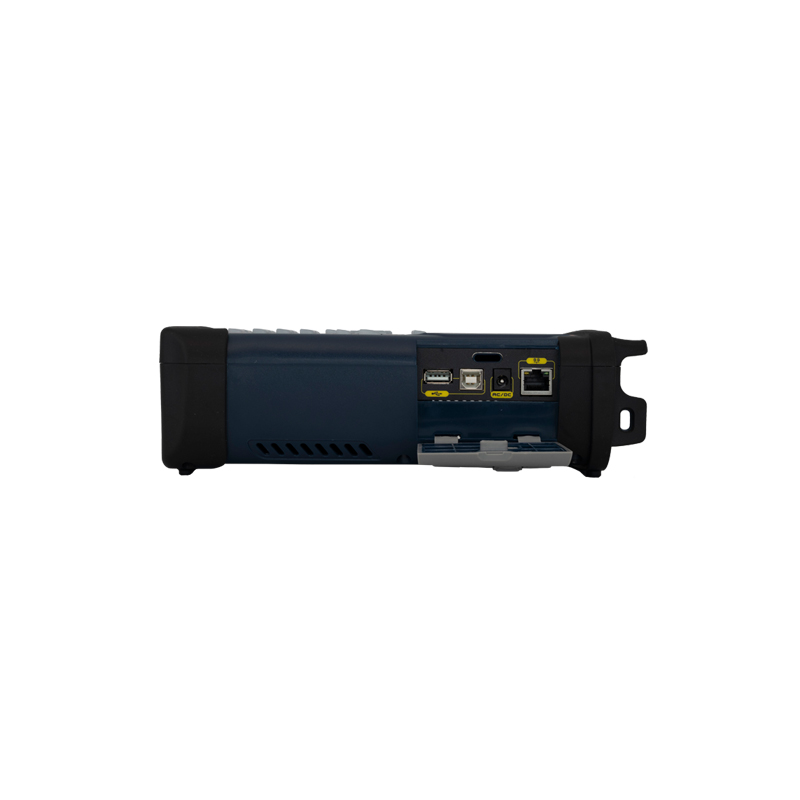

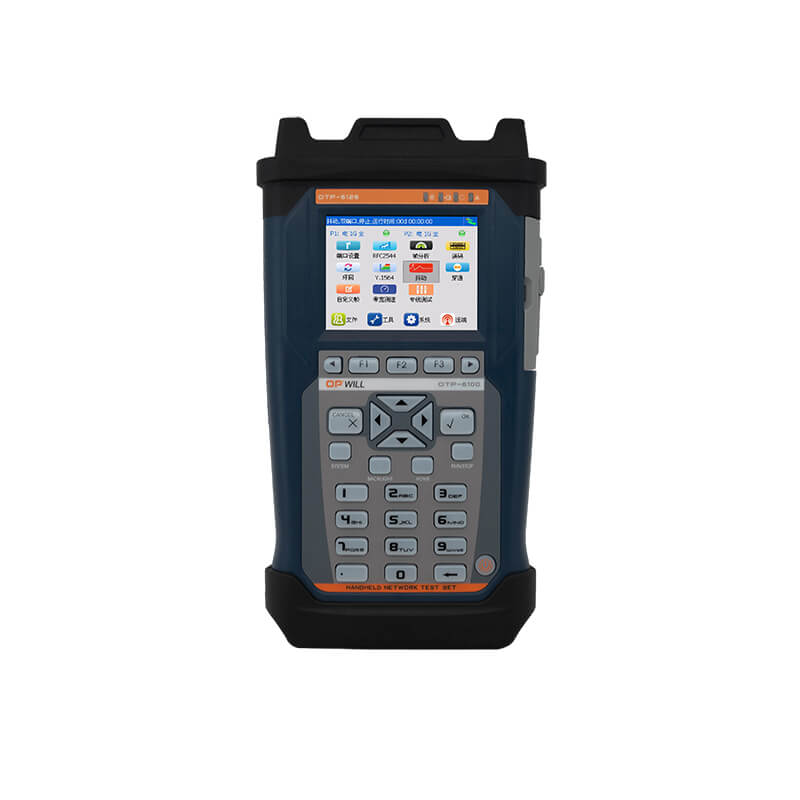

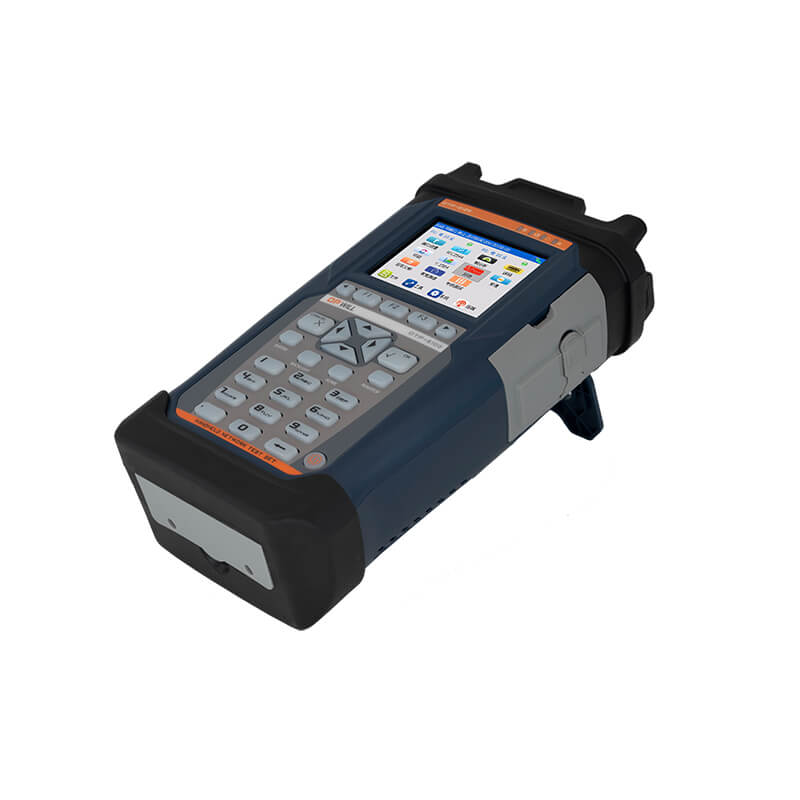

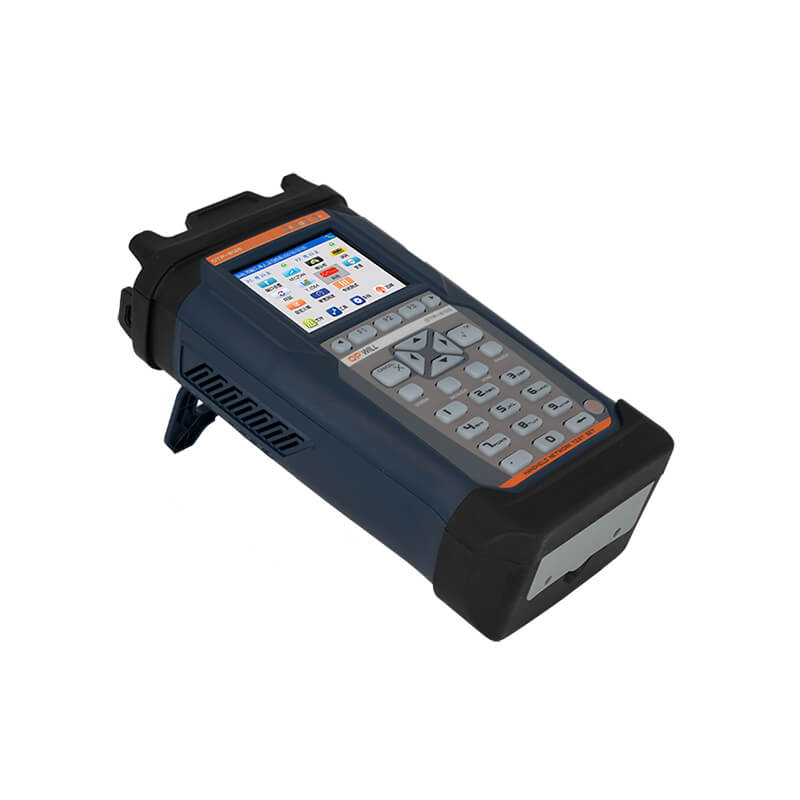

SR6126 Handheld Gigabit Ethernet Test Set

· Support full-duplex 10/100/1000 Mbps Ethernet data stream;

· Support RFC2544 (Includes: Throughput, Frame loss, Back-to-back; and Latency);

· Support Y.1564 (Optional);

· Support RFC3393;

· Support L1/L2/L3/L4 BERT test;

· Support to generate 8 data streams in maximum (MAC address, VLAN label, MPLS, IPV4/IPV6 address, Payload, and Bandwidth);

· Support to set flow priority according to CoS and ToS/DSCP;

· Support filter and package capture online;

· Support to verify SLA automatically by RFC2544 and Y.1564;

· Support dual-port through function;

· Support SDT (Service disruption test);

· Support 3 layer CoS configuration to verify Metro Ethernet service;

· Support to display test result graphically, easier to view;

· Specialized for One Gigabit Ethernet installation; operation; maintenance; and troubleshooting, or IP service.

SR6126 STANDARD CONFIGURAIOTN

Module

Description

SR6126

Handheld Gigabit Ethernet Tester;

Dual 10/100/1000M Base-T electrical interface;

Dual 1000M Base-X optical interface;

Layer 1 to Layer 4 BERT test;

Up to 8 streams generation and analysis with MAC/VLAN/IP/TCP/UDP;

RFC2544 standard test with Throughput, Latency, Frame Loss, and Back-to-Back;

Bi-directional RFC2544 test;

RFC3393 Jitter test for VoIP packets;

Layer 1 to Layer 4 loopback and smart loopback test;

Through mode for Ethernet network monitoring;

Enable to drop data packet under though and loopback mode;

Up to 1000M streams generation with 3 Layer VLAN;

Ping, Trace Route, FTP Download/Upload, and HTTP tools;

Ethernet service disruption test;

Packet capture and analysis to 1000M rate;

Cable test with CAT5 length and fault measurement;

Bi-directional test;

Enable to generate frame with random length;

Enable to generate data streams with increment MAC and IP;

Layer 1 bandwidth statistics;

Remote control by PC;

Accessories Code

Accessories Description

16080010

LC/PC to LC/PC full-duplex single-mode fibre, 3 meter, one;

16060040

CAT5 cable, 3 meter, one;

14020090

1.25G 1310nm 15Km LC SFP optical modules, two;

05020050

SFP optical port dust proof cap - black - rubber, two

05020060

RJ45 electrical port dust proof cap - black - rubber, two

43170030

S6100 100-240V input and 15V output AC/DC power adapter, one;

18080030

S6100 disc include SR6126 user manual and SeikoFire remote control software, one;

20060350

9cm Stylus Pen, one;

19070021

S6200 package, one;

18040011

One year warranty service;

18010010

Factory test report, one;

18010020

Calibration certificate, one.

SR6126 OPTIONAL CONFIGURATION

Optional Software

OPAP-Y1564AGeEth

Y.1564 standard service configuration and performance test for SLA QoS with CIR/EIR/Traffic Dropped for GE;

OPAP-DPY1564AGeEth

(Need to order OPAP-Y1564AGeEth first)

Bi-directional Y.1564 test;

OPAP-IPv6AGeEth

IPv6 feature, the test interface can set IPv6 address and can generate stream with IPv6;

OPAP-ScanAGeEth

Traffic scan according with destination MAC/IP, source MAC/IP, 3 Layer VLAN, 3 Layer MPLS in-service test;

OPAP-EautoAGeEth

Advance auto-negotiation, can set the remote equipment auto-negotiation the speed and duplex as you want;

OAPA-EPINGAGeEth

Advance/Fast PING, PING segments of the IP one by one in one time;

OPAP-3MPLSAGeEth

Up to 1000M streams generation with 3 Layer MPLS label;

OPAP-DPRFC2544AGeEth

Enhancement RFC2544 test, support different upstream and downstream rates setup for Throughput, Frame Loss and Back-to- Back test;

OPAP-FXAGeEth

Dual 100M Base-X optical ports;

Optional Hardware

43160020

S6100 lithium polymer rechargeable battery;

OPAP-One warranty

One year extended warranty service;

OPAP-Two warranty

Two years extended warranty service;

14020160

1.25G-850nm-550m-MM-LC-SFP-DDM;

14020090

1.25G-1310nm-15km-SM-LC-SFP-DDM;

14020340

1.25G-1550nm-40km-SM-LC-SFP-DDM.
