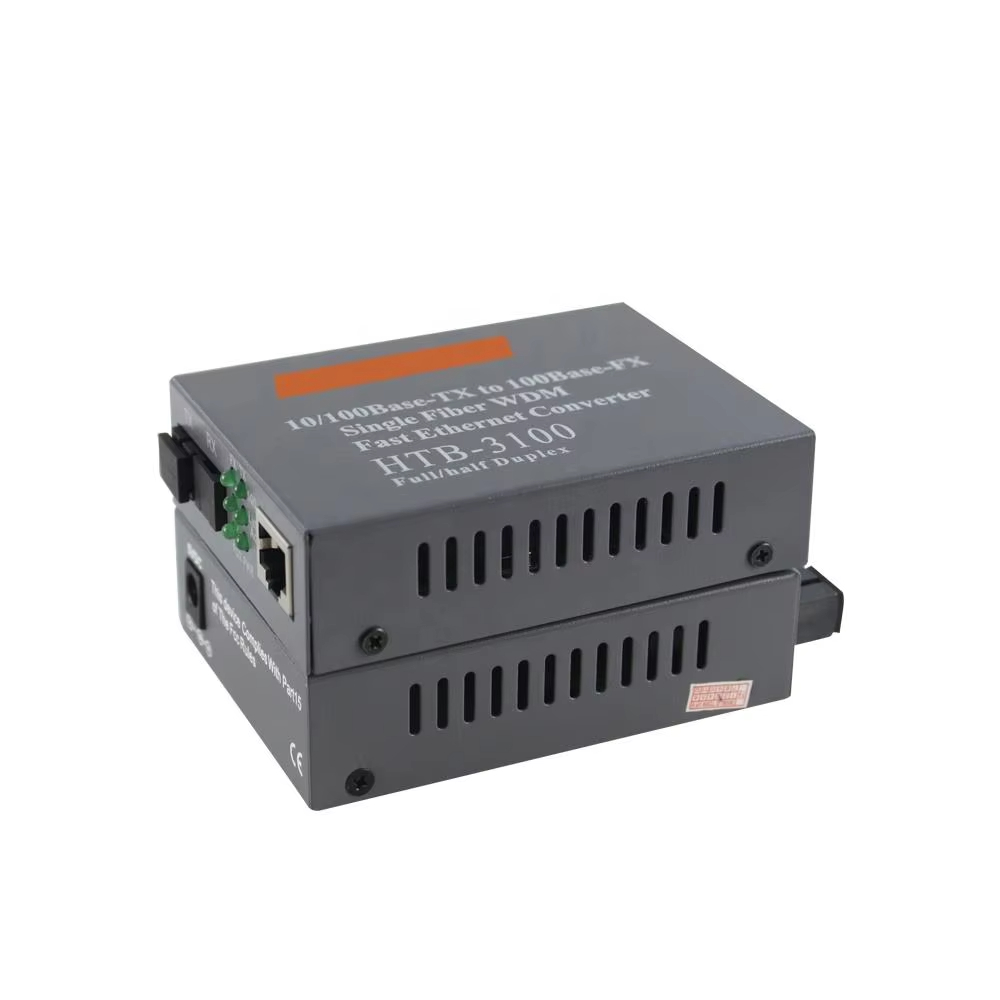

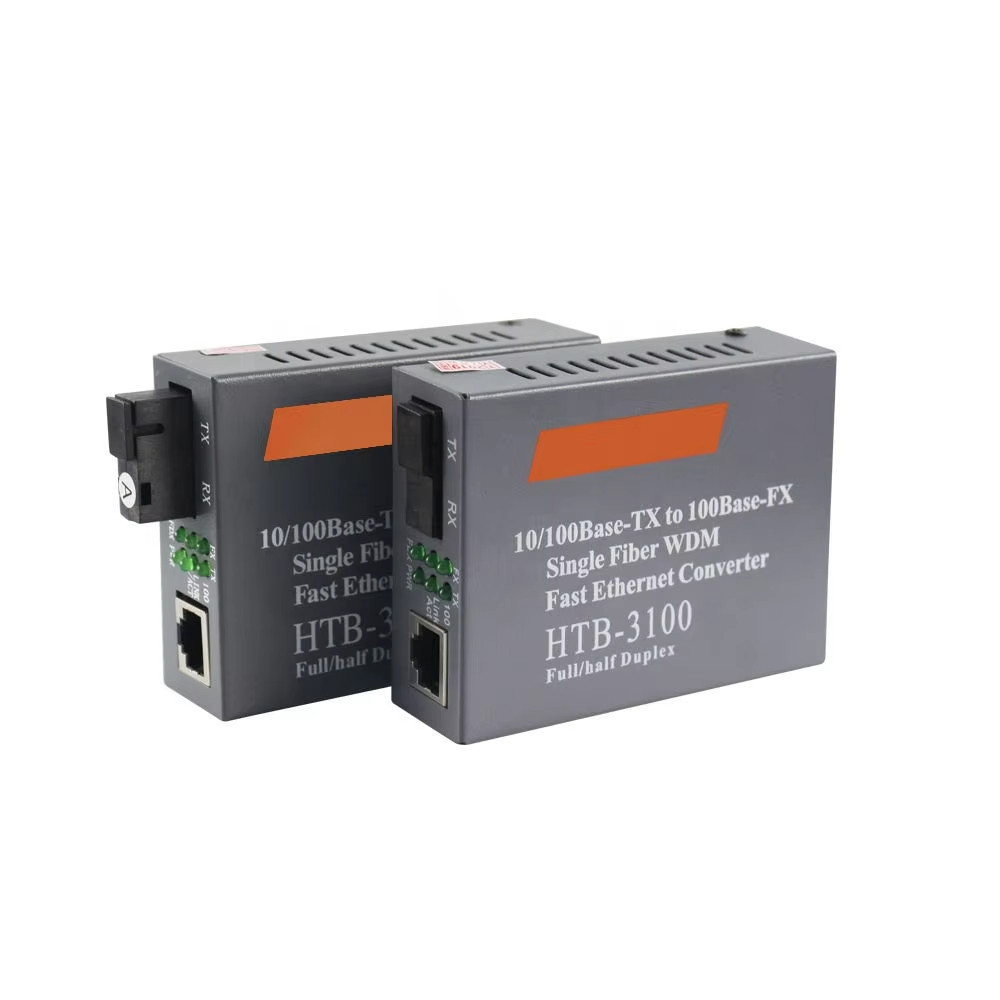

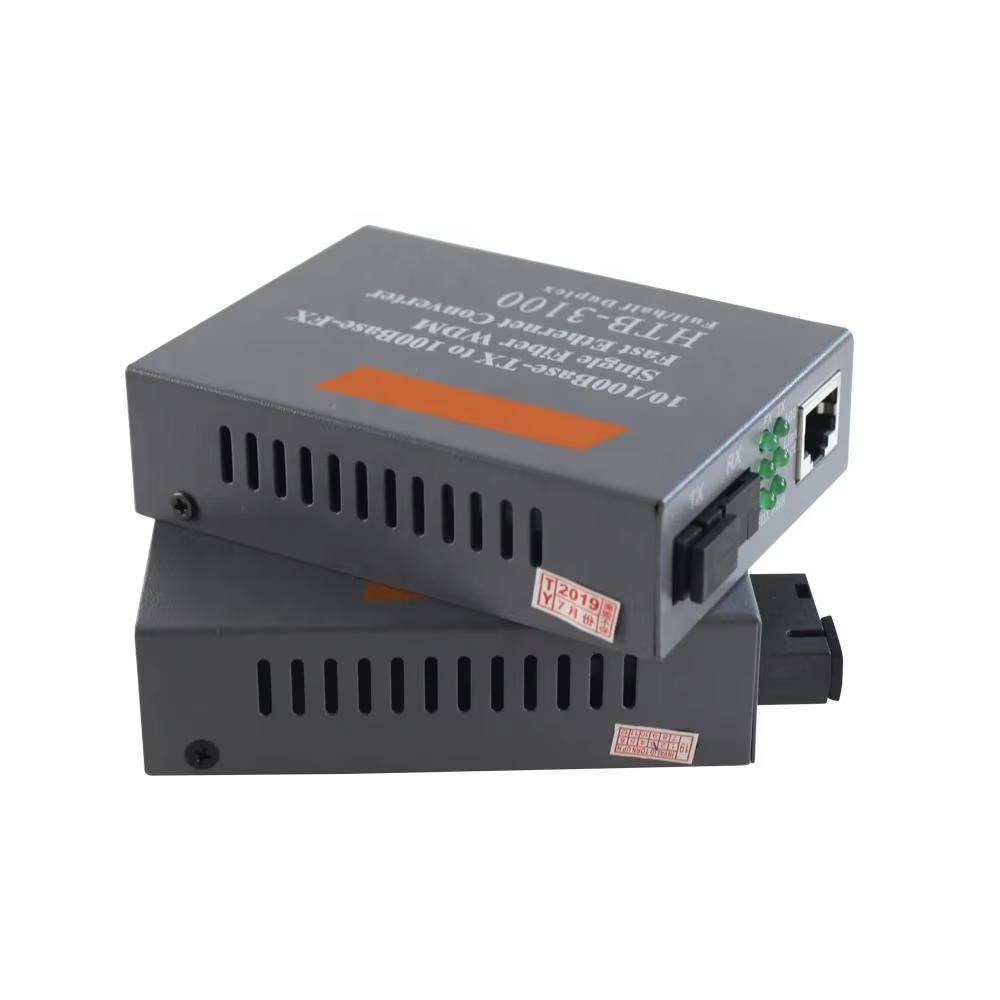

HTB-3100 ethernet media converters are designed to transmit and receive 10/100Mbps data over multimode or single mode optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.
HTB-3100 ethernet media converters are designed to transmit and receive 10/100Mbps data over multimode or single mode optical fiber. The electrical interface will Auto-Negotiate to a 10Mbps, 100Mbps Ethernet rate without any adjustments. The optical interface operates at a 100Mbps Ethernet rate. LED indicators are provided for rapidly ascertaining equipment operating status.
Feature
The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex.UTP port supports MDI / MDI-X auto crossover Supporting flow control Supporting 1552 Byte packet Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.Design of internal or external power supply for selection by users
Specification
Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FXMAC address table: 1KConnector:
UTP: RJ-45 10/100Mbps;Fiber: SC 100Mbps
Cable:
UTP: Cat. 5 UTP (the max distance up to 100m)Fiber(Single mode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
Flow Control
Full Duplex: IEEE802.3xHalf Duplex: Back pressure

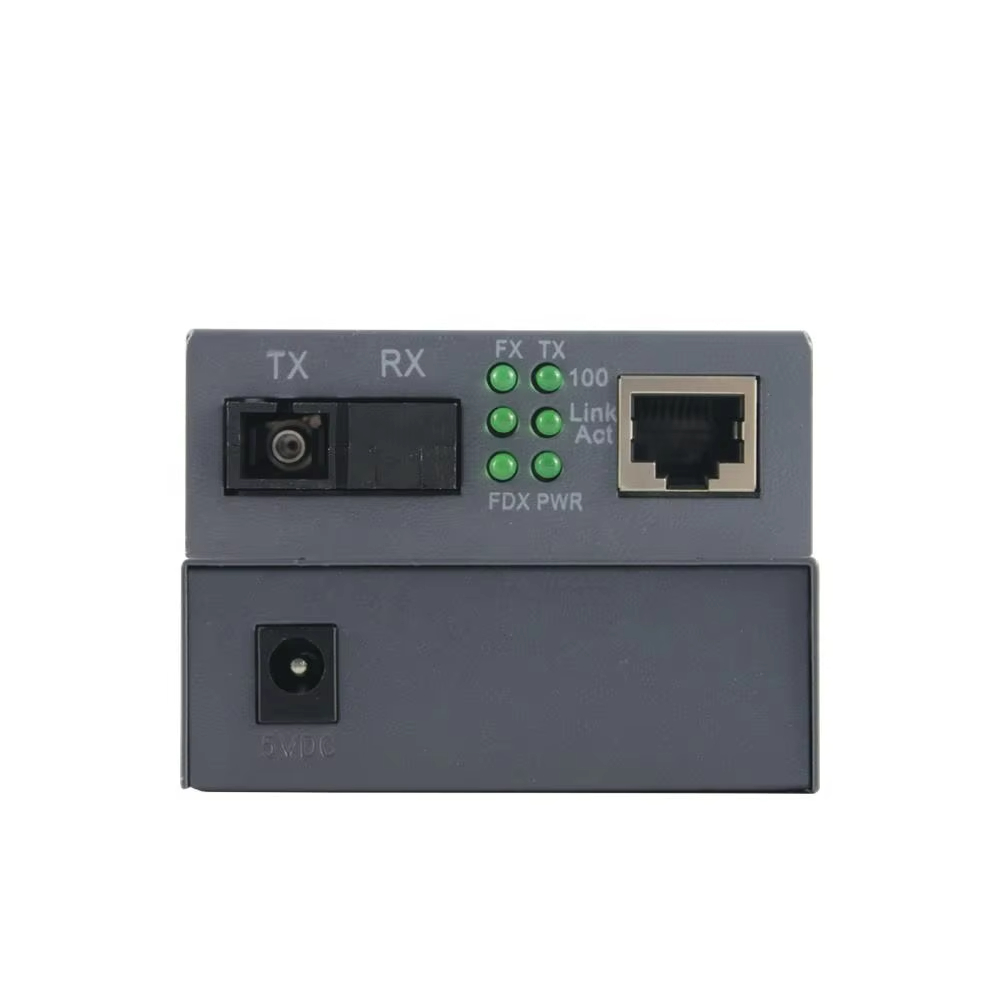

LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.Power: AC 110V - 220V to DC 5V; DC48V to DC 5VAmbient temperature:0 ~ 50℃Storage temperature:-20 ~ +70℃Humidity: 5% ~ 90%Dimensions:
Internal power: 30x110x140mmExternal power: 26x70x93mm
