Product Description
L925 series Fiber Optical Mechanical Splicer can easily connect 250μm and 900μm diameter fiber. Optical Mechanical Splicer is suitable for indoor drop cable connectors don not need any adhesive and curing process. It has three kinds of models, choose different models by different scenarios, how to select the order as shown in the order guide. Precision metal alloy components coaxial autocollimator on the core, excellent durable optical performance;

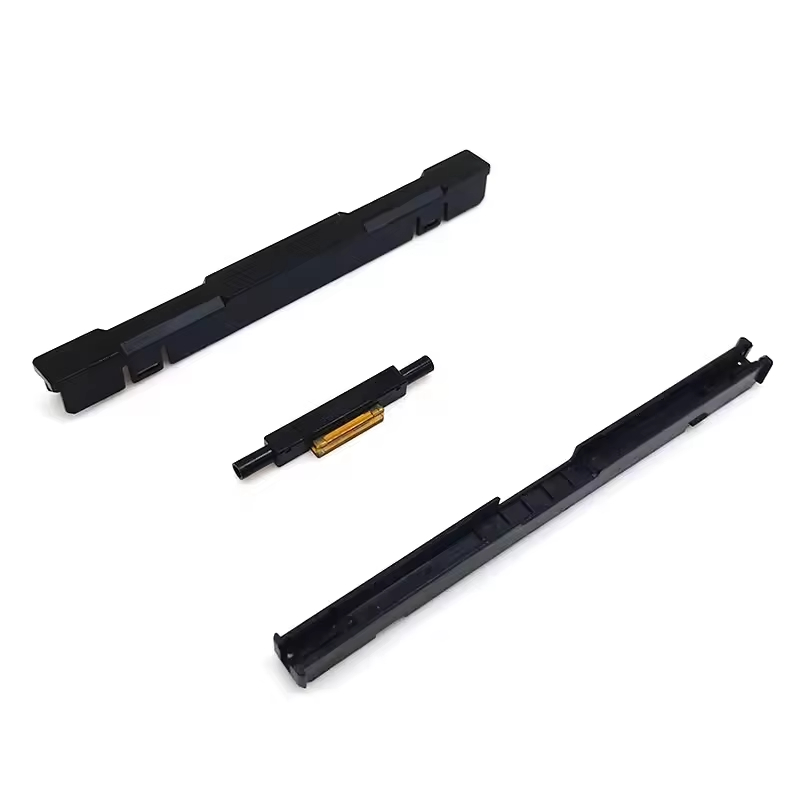

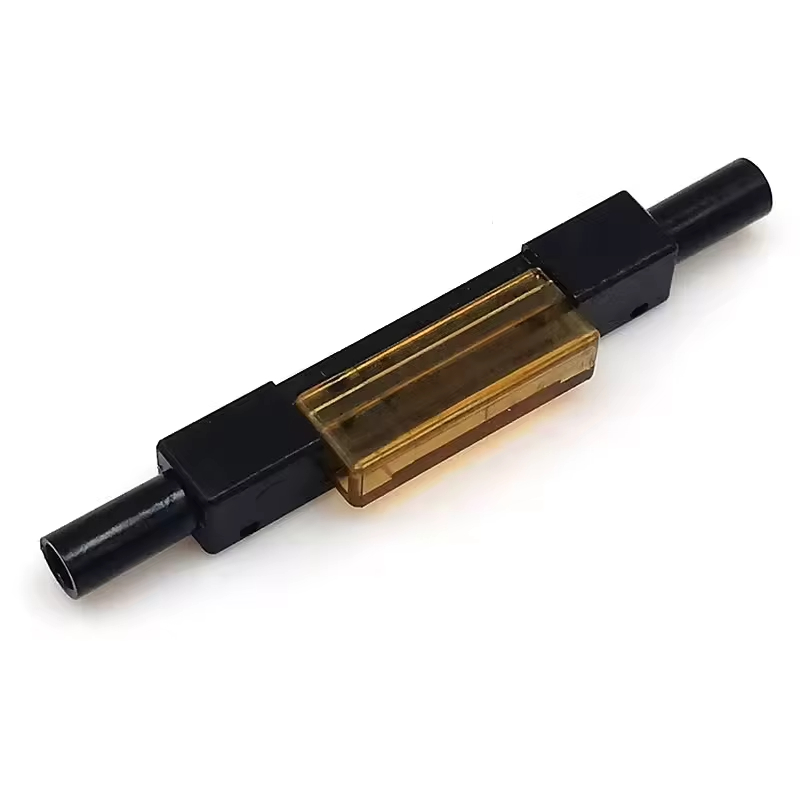

This product is L925BP Optical Fiber Mechanical Splice, it is also called L925BP drop cable fast connector, which can be used for the fiber optic indoor 2*3mm fig 8 butterfly shape drop cable field cold junction. With the fixed buckle, the protecting housing and the optical fiber connection module, L925BP can be an ideal tool for the drop cable connection and maintenance.
Features
· Fiber axial solid fit, reducing the performance degradation caused by the loss of matching fluid;
· Intermittent fit connection technology to ensure signal transmission;
· Bare fiber, tight-clad and pigtail triple can fully meet environmental requirements for end-customer;
· Integrated shell protection, can be long-term used outside;
· High rate of success for installation and easy installation, the average connecting time is 150 seconds;
· It is applicable for optical fiber splicing and restoration for damaged lines.

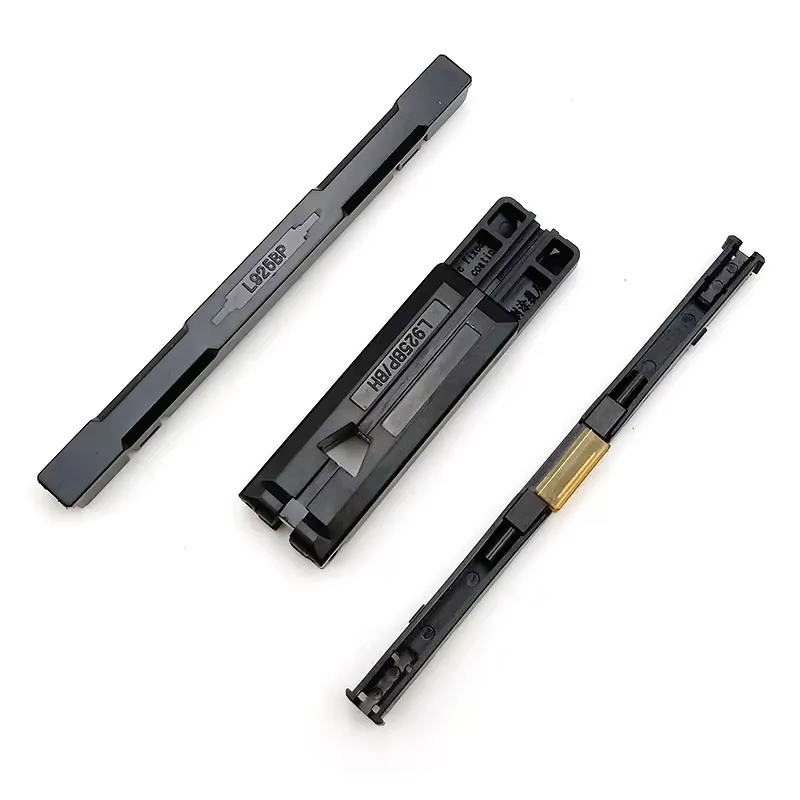

Note : L925BP is with housing, suits 2*3mm drop cable. L925B is without housing, suits 0.9mm 0.25mm optical fiber. Don't mistake it.
Specification
|
Applicable for
|

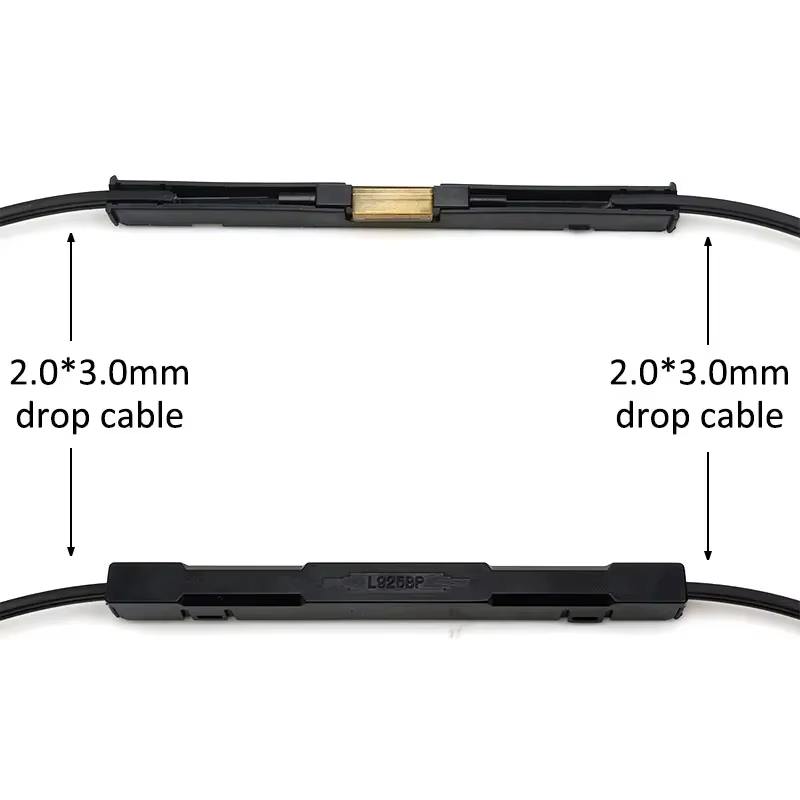

2*3mm indoor drop cable
|
|
Optical fiber diameter
|
125um ( G652 & G657 )
|
|
Tight buffer diameter
|
250um or 900um
|
|
Fiber mode
|
Single & multimode
|
|
Operation time
|
About 60s(No fiber cut)
|
|
Average Insert loss
|
≤ 0.20dB
|
|
Return loss
|
≥ 40dB
|
|
Fastening strength of naked fiber
|
> 5 N
|
|
Fastening strength of naked fiber holder
|
> 10 N
|
|
Using temperature
|
-40~+75°C
|
|
Storage temperature
|
-40~+80°C
|
