1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Muti-mode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail
Support Ordering Parameters
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Muti-mode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail
Features
Low insertion loss and back reflection loss
Good changeability Good Durability
High temperature stability
CE, ROHS, FCC
Superior quality standard PC/UPC/APC polishing
Applications
Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV
Specifications
|
Item |
Unit |

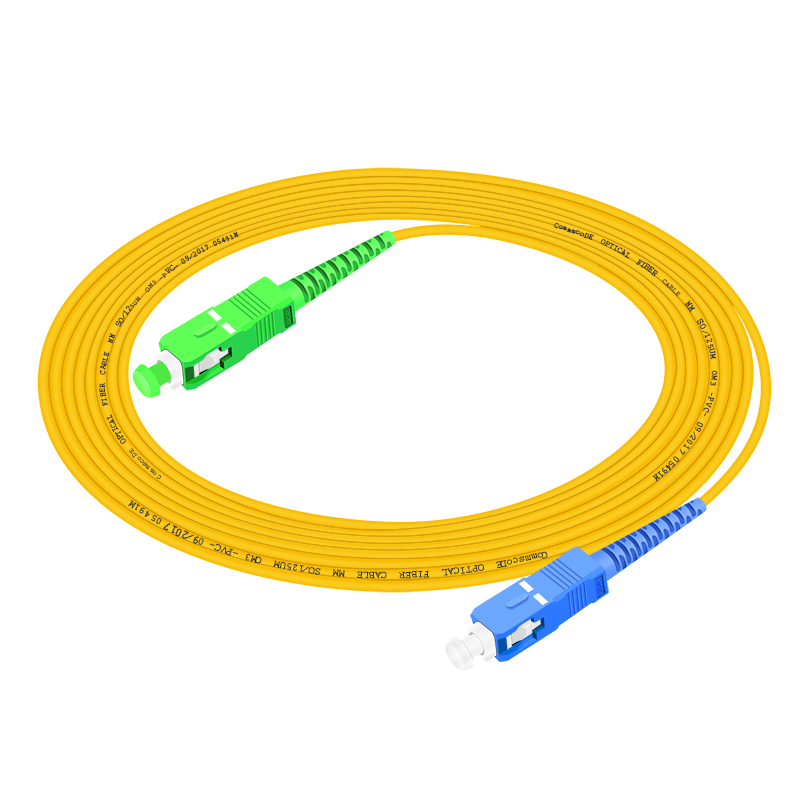

LC/SC/FC/ST Fiber Patch Cord |
||||
|
SM |
MM |
|||||
|
Fiber Diameter |
UM |
9/125 |
65.5/125 |
50/125 |
||
|
Polishing |
|
PC |
UPC |
APC |
PC |
PC |
|
Insertion Loss |
dB |
≤0.2 |
≤0.15 |
≤0.2 |
≤0.1 |
≤0.1 |
|
Return Loss |
dB |
≥55 |
≥50 |
≥60 |
≥35dB |
≥35dB |
|
Insert-pull Test |
dB |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.15 |
≤0.15 |
|
Interchangeability |
dB |
≤0.1 |
≤0.1 |
≤0.15 |
≤0.1 |
≤0.1 |
|
Temperature Range |
℃ |
-40~+80 |
||||
|
Durability(1/Matings) |
≥1000 |
|||||
|
Tensile Strength (N) |
≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 |
|||||
|
Fiber |
9/125um, 50/125um,62.5/125um, etc. |
|||||
|
Diameter |
0.9mm 2.0mm, 3.0mm etc |
|||||
|
Cores |
Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc. |
|||||
