--- Accurate· Fast,· Reliable · High performance-Price-Ratio

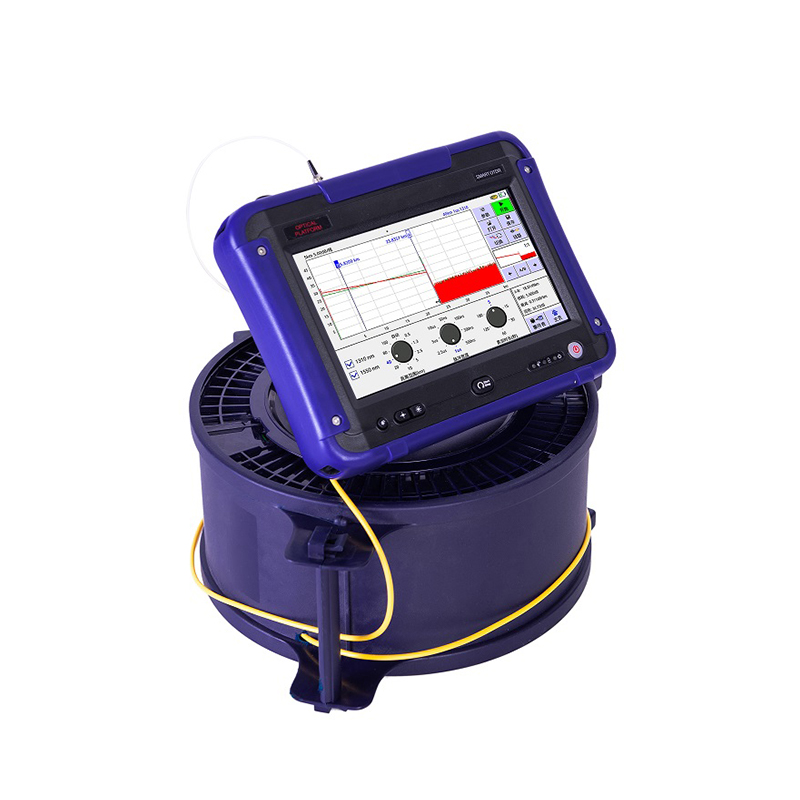

 SR8000 series optical fiber comprehensive tester integrates optical time domain reflectometer, optical power meter (optional), light source (optional), and visual light source, which can test the performance characteristics of optical fiber physical layer. Among them, OTDR has excellent blind area and first-class dynamic range, and there are five models to choose from, which can better meet your specific OTDR test requirements. Combined with visual fault, it can guarantee the whole process fault detection of optical fiber.

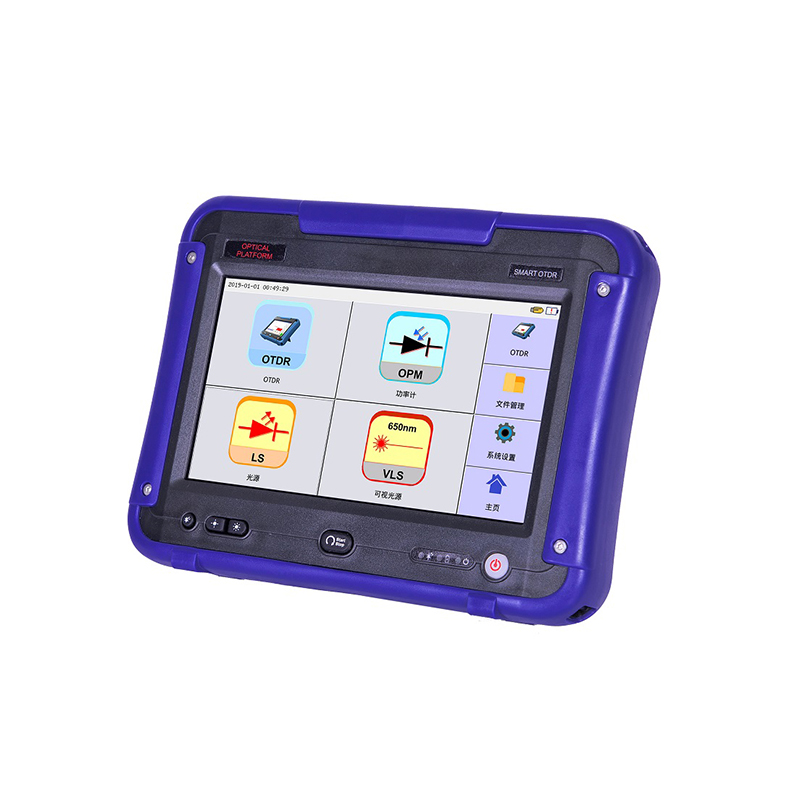

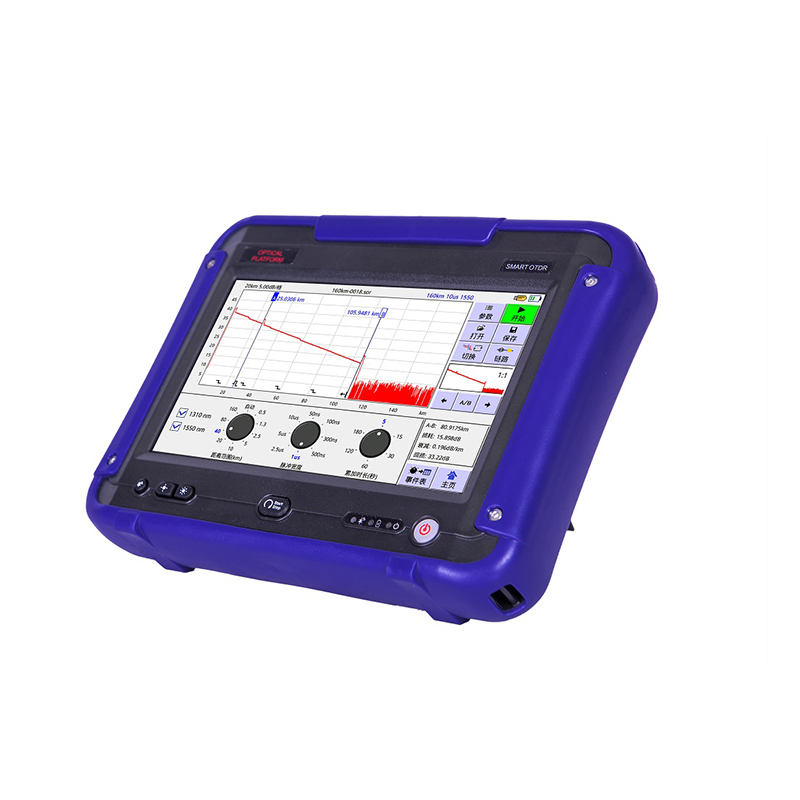

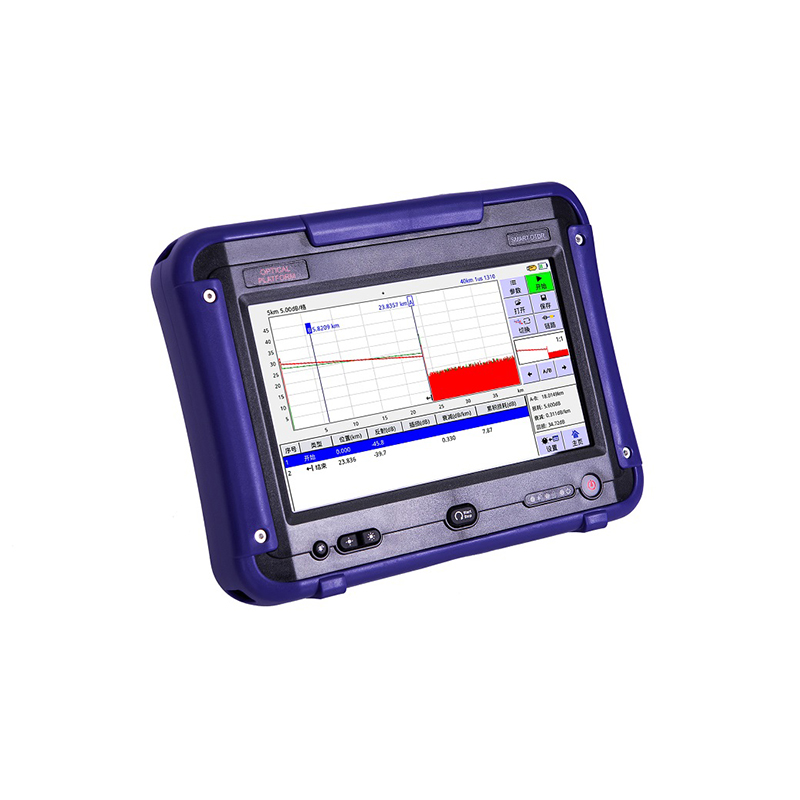

SR8000 series is an OTDR designed with reference to the operation mode of tablet computer and smart phone. It has a simple and lively operation interface, and is perfectly combined with 7-inch enhanced capacitive touch screen. It can provide unprecedented user experience without special training. It is small and light, easy to carry and durable, more suitable for outdoor environment.

Main features:

Accurate, fast, reliable and easy to operate.

The 7-inch outdoor enhanced capacitor touch screen provides a simple and clear block friendly operation interface, intelligent one key operation, instant

opening and side opening.

It fully supports the function of hand gesture to enlarge and reduce the test trace

Optimization mode test of OTDR:

--It provides high-speed test mode for network opening

--It provides accurate test mode for network maintenance

A variety of OTDR dynamic ranges and wavelength combinations are available

The OTDR has dual wavelength test function, which can directly observe the macro bend point of optical cable

A variety of test modes: average mode; real-time mode; real-time conversion average mode; average mode + real-time

The OTDR has the function of line light alarm to protect optical devices to the maximum extent

The OTDR has the function of optical module self-test, which can automatically detect the performance status of optical module

The OTDR has Chinese and English input, friendly input interface, fully simulate the input mode of mobile phone, and support automatic saving function.

It has the function of U disk folder establishment to ensure the classified storage of different optical cables

The large capacity lithium battery has triple protection of over-current, over temperature and over-voltage, and the working time is more than 10 hours

The external power interface has input high-voltage protection to prevent high-voltage input from burning the instrument.

The storage space of super large capacity can be extended by connecting USB interface with USB disk to expand 160G storage space

   The remote instrument software can be upgrade

Module Choice:

Specifications
