OPM&VFL

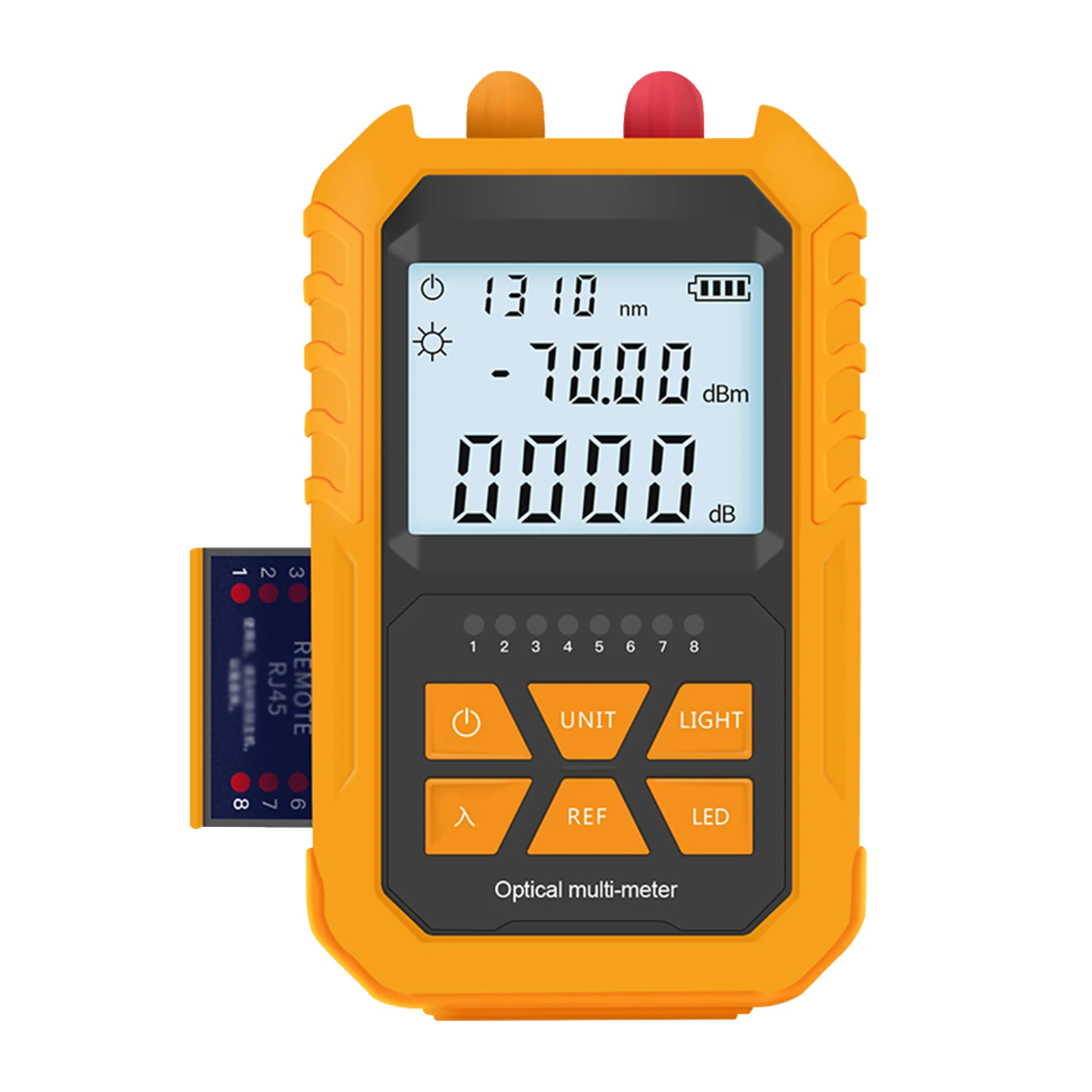

Y3 4 in 1 OPM+VFL Multimeter
Y3 4 in 1 OPM+VFL Multimeter
Y3 4 in 1 OPM+VFL Multimeter
Y3 4 in 1 OPM+VFL Multimeter
Y3 4 in 1 OPM+VFL Multimeter

Y3 4 in 1 OPM+VFL Multimeter

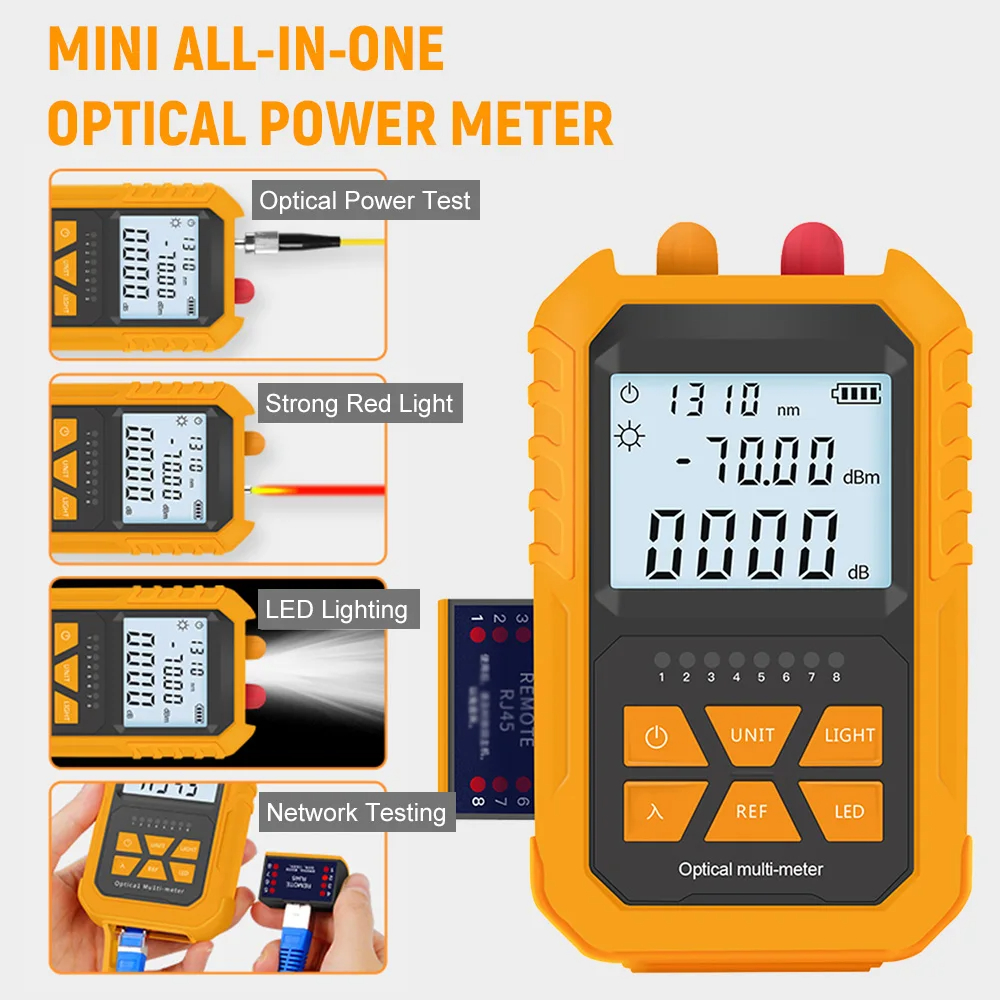

Optical Power Test
Strong Red Light
LED Lighting

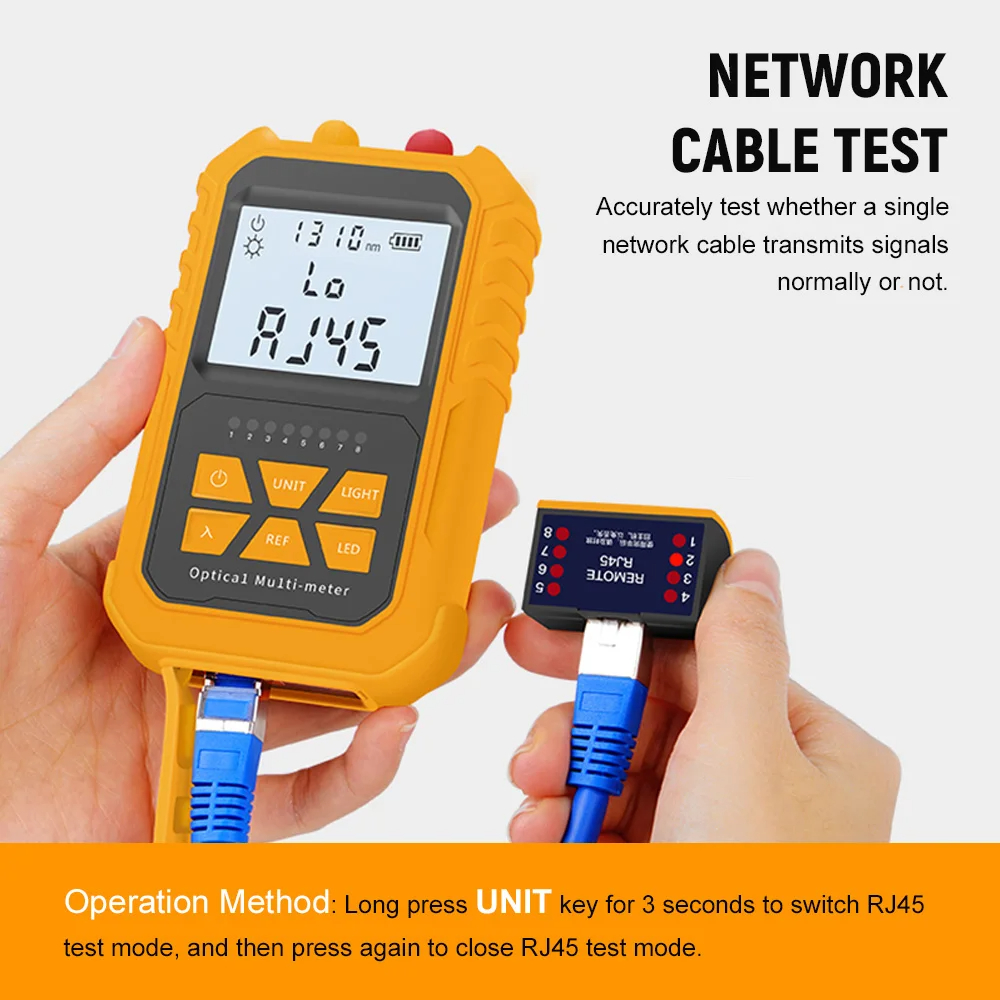

Network Testing

Product Introduction



Wavelength range 800 to 1700
Connector FC/SC/ST
Detector type Ingaas
Measuring range Type A:(-70+6)Type B:(-50+26),other measurement rangescan also be customized
uncertainty ±0.2dB

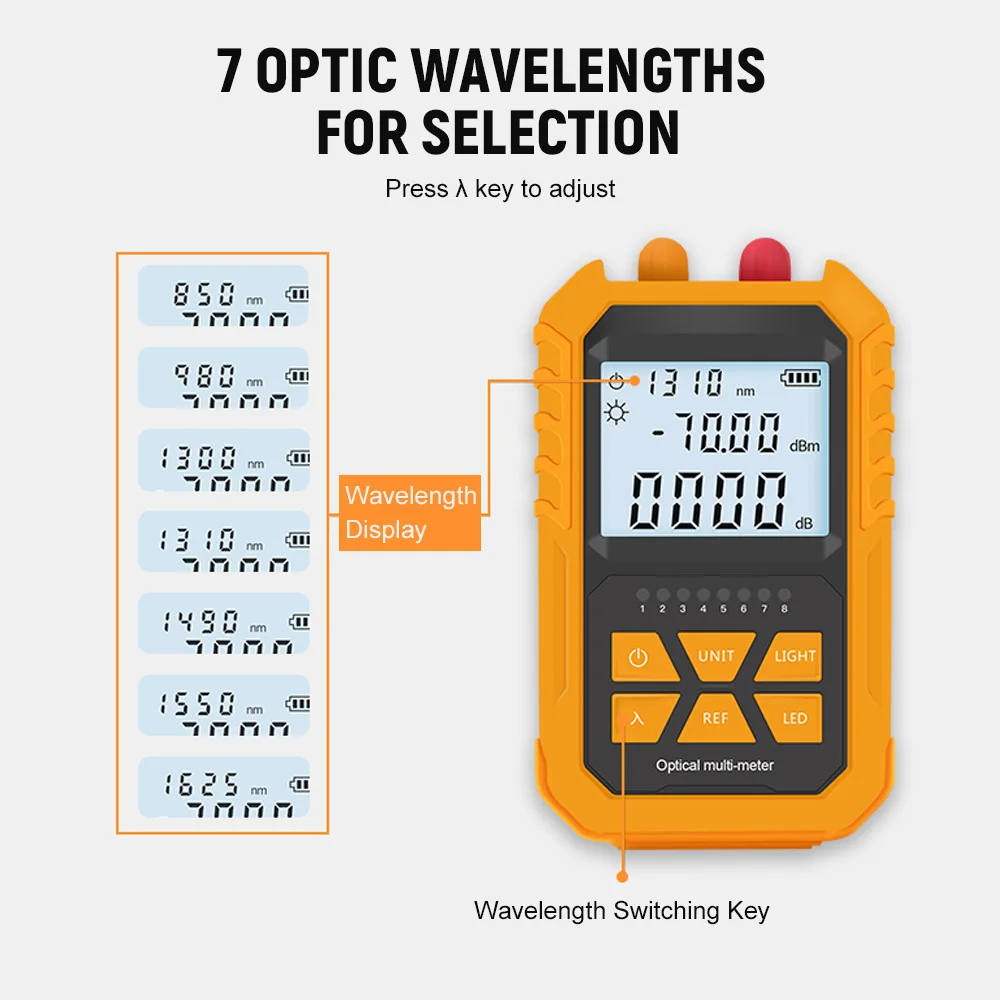

standard wavelength 850.980.1270.1300.1310.1490.1550.1577.1625nm
display resolution Lineardisplay:0.1%Logarithmic display:0.1dBm
Red light working wavelength 650nm
Red light power >5mW/15mW
Operating temperature 10 to+60℃
Storage temperature -25 to+70℃
Automatic shutdown time 10 minutes
Battery duration ≥48 hours
Instrumentsize 118*68*30mm
power supply Built in lithium battery (rechargeable)/7-size battery*2(powered)USB externalpower supply
weight 0.14Kg
  Kind reminder:The measurement range of this all-in-one machine is divided
  into A type:(-70+6)B type:(-50+26)

  Other measurement ranges can also be customized.Customers who need other
  ranges can contact customer service for customization
