G10 Optical Power Meter

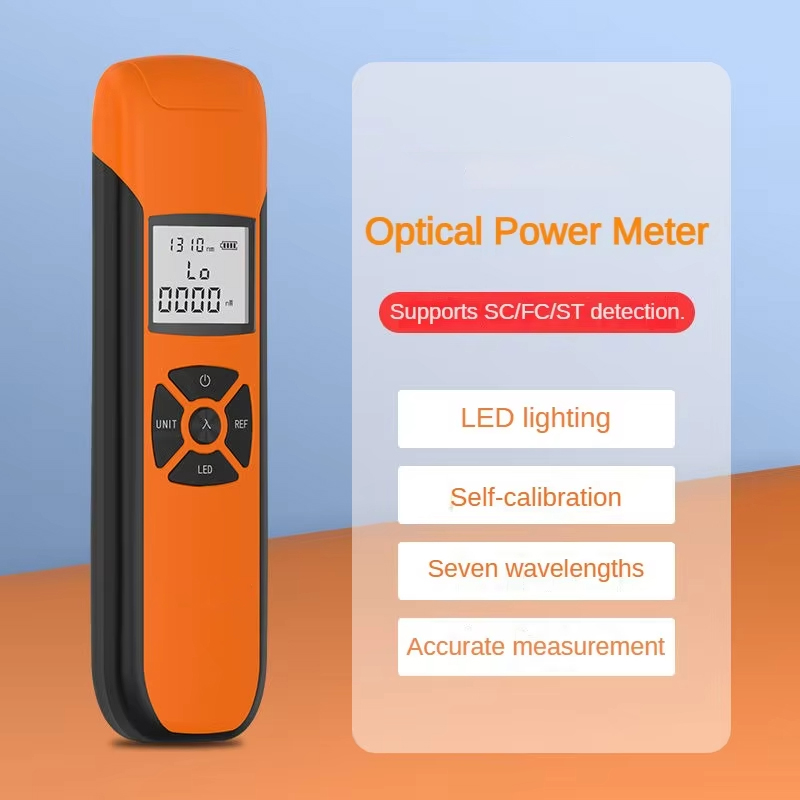

LED Lighting
Self-Calibration
Seven wavelengths
Accurate Measurement
Product
List display
National Service Hotline
+86 15358527285
Optical Power Meter
Product Introduction
|
Standard wavelength |
850/980/1300/1310/1490/1550/1625nm |
|
Measuring range |
-70~+6\-70~+10\-50~+26 |
|
Frequency Identification |
0Hz、270 Hz、1000 Hz、2000Hz |
|
Probe type |
lnGaas |
|
Display resolution |
Linear Display:0.1% Logarithmic Display:0.01dBm |
|
Uncertainty |
±5% |
|
Battery life |
≥20H |
|
Battery capacity |
400mAh |
|
Charging duration |
≤3H |
|
Charging voltage/current |
5V/≤500mA |
|
Automatic shutdown time |
10 minutes |
|
Power supply mode |

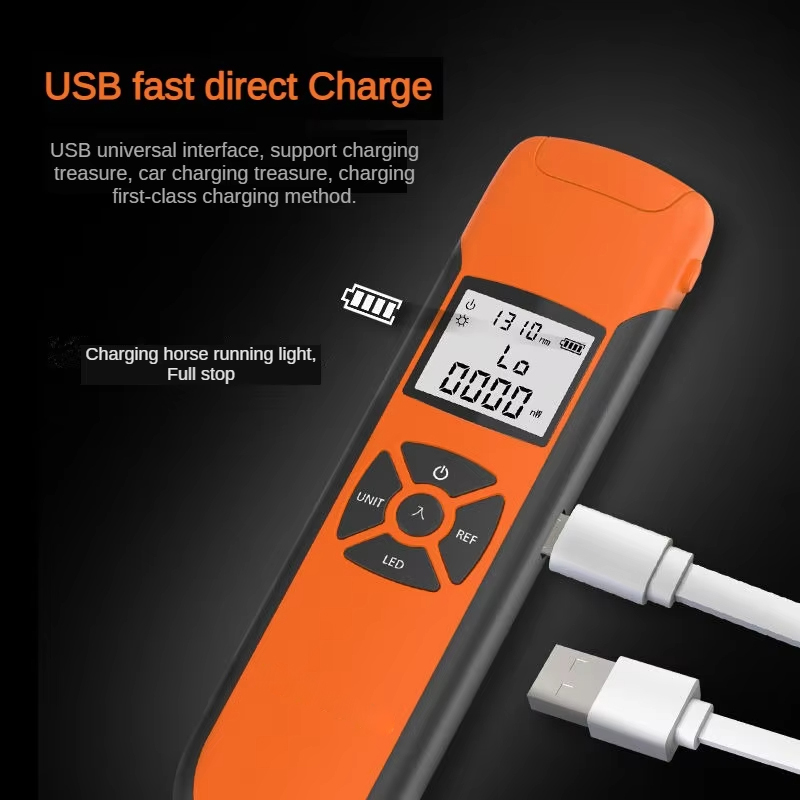

Built-in lithium battery,USB port |
|
Net Weight |
52g |
|
Product Size |
34*17*125mm |
|
Packing size |
56*35*148mm |
