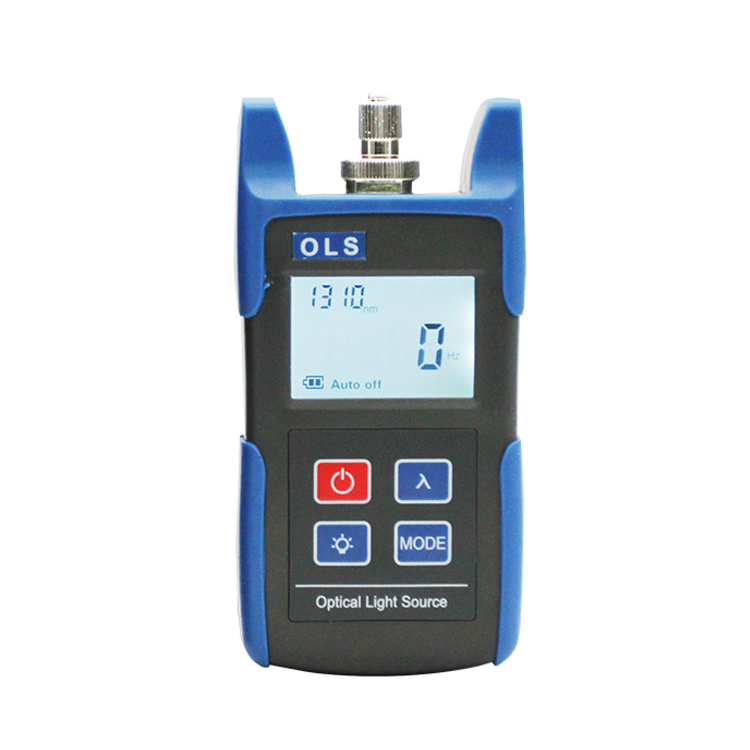

SR512 Optical Light Source
Good stability in output power
Optional auto-shutdown
Large LCD display and backlight
Battery power display
Product
List display
National Service Hotline
+86 15358527285
Optical Light Source
Product Introduction
Introduction
SR512 Optical laser light source is a self-developed instrument, Which features advanced control technology , high output, ultra low-power operation. It can work at 1625nm, 1550nm, 1490nm, 1310nm, 1300nm, 850nm、650nm, single wavelength, dual-wavelength or tri -wavelength. It can export a variety of modulation frequency (CW, 270HZ, 1KHZ, 2KHZ). It is widely used in optical communication, optical measurement, optical fiber sensing, and so on.
Specification
|
Type |
SR512 |
|
Emitter Type |
FP-LD |
|
Wavelength（nm） |
650、850、1300、1310、1490、1550、1625（1-3 wave） |
|
Optical Connector |
FC（SC/ST can be optional） |
|
Output Power(dBm) |
≥ 3m w @ 650nm; ≥ -7dBm @ 850/1300nm |
|
Output Stability(dB) |
±0.04@20℃@15min |
|
Modulation Frequencies |
CW,2Hz@650nm;CW,270Hz,1KHz,2KHz@others |
|
Fiber Type |
SM、MM |
|
Power Supply |
AAA 1.5V(3pcs batteries) |
|
working time(h) |
40hours |
|
Operating Temperature(℃) |
-10～+50 |
|
Storage Temperature(℃) |
-20～+70 |
|
Dimension(mm) |
125*65*29mm |
|
Weight(g) |
160 |
