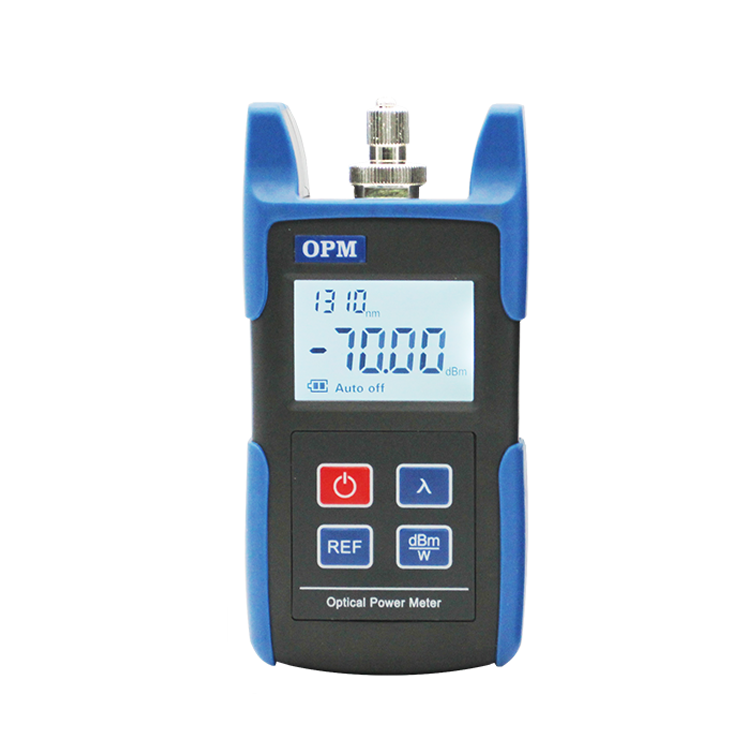

SR510 Optical Power Meter
Auto-off function
Backlight LCD display
User self-calibration function

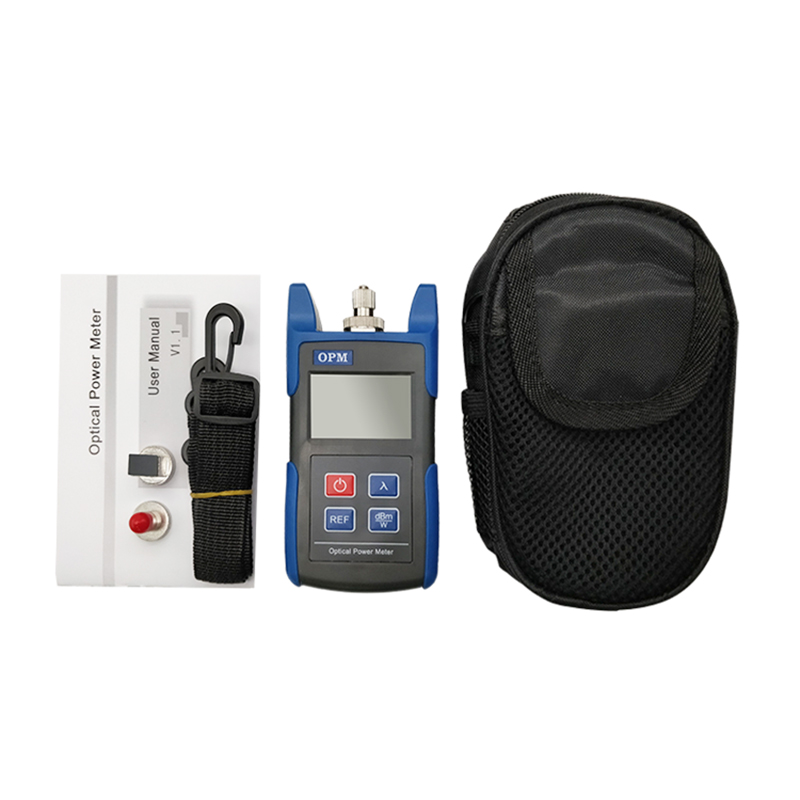

SC+FC connectors included
Product
List display
National Service Hotline
+86 15358527285
Optical Power Meter
Product Introduction
Introduction
SR510 Mini-Designed Optical Power Meter is a self-developed test instrument , which is widely used for installation, operation and maintenance of fiberoptic network. And it can test six calibrated wavelength optical power within the range of 800~1700nm.
Specification
|
Model |
SR510 A |
SR510C |
|
Measuring Range |
+8 ~ -70dBm |
+26 ~ -50dBm |
|
Accuracy * |
± 0.2dB |
|
|
Calibrated Wavelengths |
850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm |
|
|
Resolution |
0.01dB |
|
|
Connecting Adapter |
FC/PC & 2.5mm Universal |
|
|
Reference Value storage |
Yes |
|
|
Automatic Power Off |
No operation in 10 minutes (can be canceled), Low battery energy |
|
|
Tone Detector ** (optional) |
+5 ~ - 40 dBm |
+20 ~ - 25 dBm |
|
Battery Charge |
Yes |
|
|
Battery Life |
Above 100 hours |
|
|
Storage Temperature |
-20 -- +60 ℃, 90%RH |
|
|
Operating Temperature |
-10 -- +50 ℃, 90%RH |
|
|
Power Supply |
3* AA batteries or AC/DC adapter |
|
|
Size |
160mm * 75mm * 32mm |
|
|
Weight |
About 160g |
|
