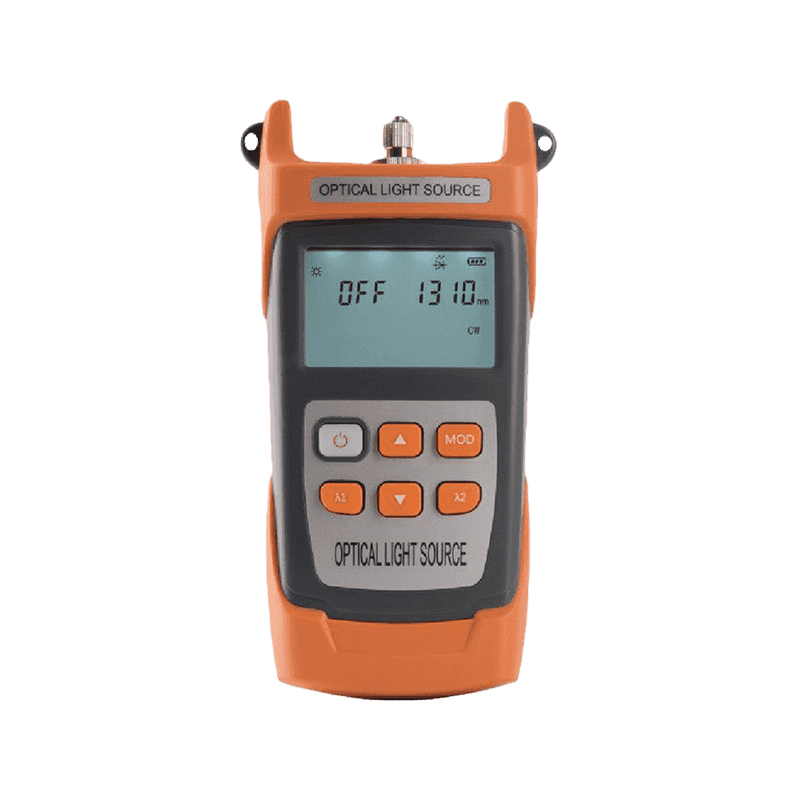

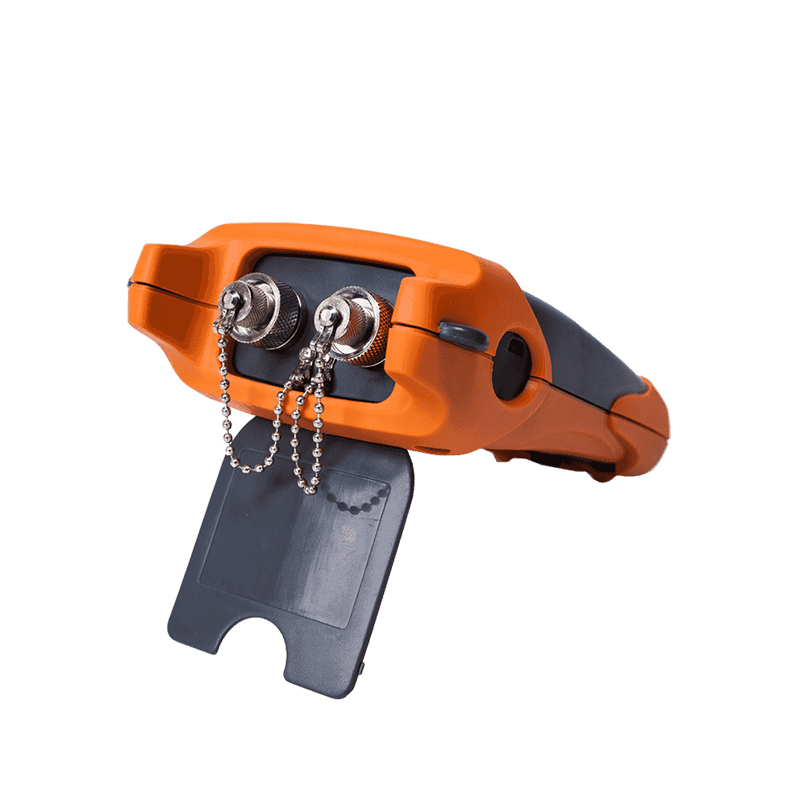

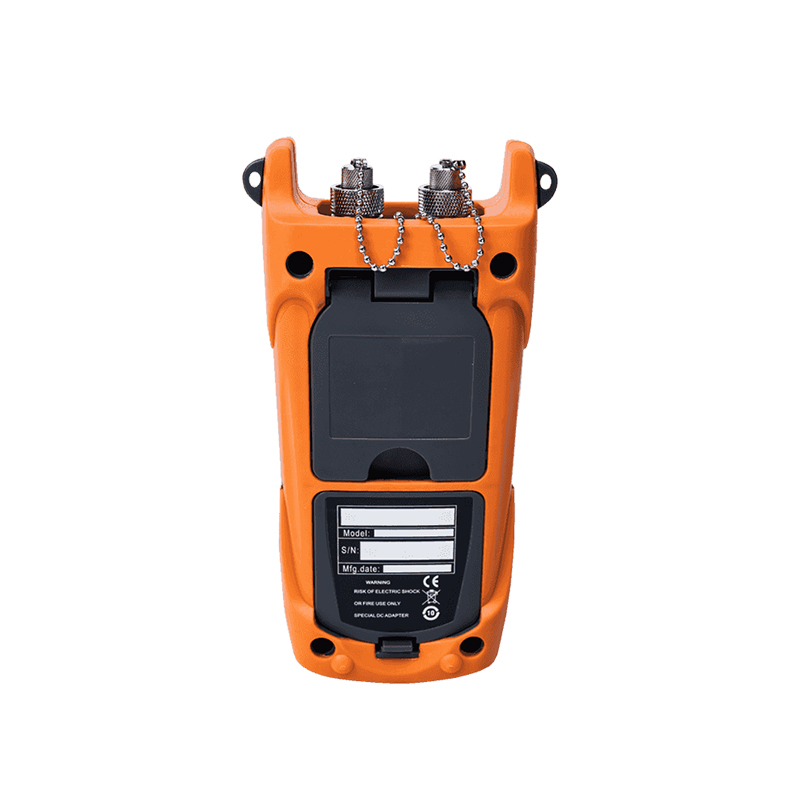

Optical Light Source

Support backlight switch
Support SM/MM integration
Support CW and multiple modulation output
Customized 1625nm/1650nm

Features

Support cw and a variety of modulation light output

Output optical power adjustable, Adjustment range 6dB, step 1dB (optional).

Support automatic shutdown

Backlight intelligent control

Supports single wavelength, combined wavelength customization (1490nm, 1625nm)

Specifications

Center wavelength	850/1300(MM)	1310/1550(SM)
Optical Connector	FC/SC/ST
Wavelength	850/1300/1310/1490/1550/1625/1650nm
Power stability (dB)	0.02
Laser type	FP-LD
Output power	≤-5dBm
Short-term stability	±0.05dB/15min
Long-term stability	±0.15dB/8h
Way of working	CW, 270Hz/1kHz/2kHz
Operating temperature	-10~+60℃
Storage temperature	-30~+70℃
Working humidity	5%~95%RH
Continuous working time	≥80h
Structure size	100mm×50mm×186mm
Power	Three section 5 batteries/Lithium battery (optional)
Instrument net weight	240g
