1.The relative power is displayed by digital;
2.There is no need to interrupt the light source during on-line test;
3.Identify 270Hz,1kHz,2KHz modulation signals;
4.Operation mode:simple,quick and convenient;
5.Battery power display function,can clear the state of power at any time
6.Four in one universal fixture,no need to replace during on-line test Clamp to ensure no damage to the fiber.
Product Profile
Optical fiber identification instrument with red light source is a kind of optical fiber maintenance Necessary tools for lossless optical fiber identification work,as well The red light source can be used to test the light transmission of the optical fiber line. Any position of the mode fiber is detected. During maintenance and installation. When wiring, it is often necessary to look for it without interrupting the work. And separate a specific fiber by putting 1310nm at one end Or 1550nm with modulation tone(270Hz,1kHz,2KHz). The signal is sent into the optical fiber and identified on the line with a recognizer To the effective direction.
Product features
1.The relative power is displayed by digital;
2.There is no need to interrupt the light source during on-line test;
3.Identify 270Hz,1kHz,2KHz modulation signals;
4.Operation mode:simple,quick and convenient;
5.Battery power display function,can clear the state of power at any time

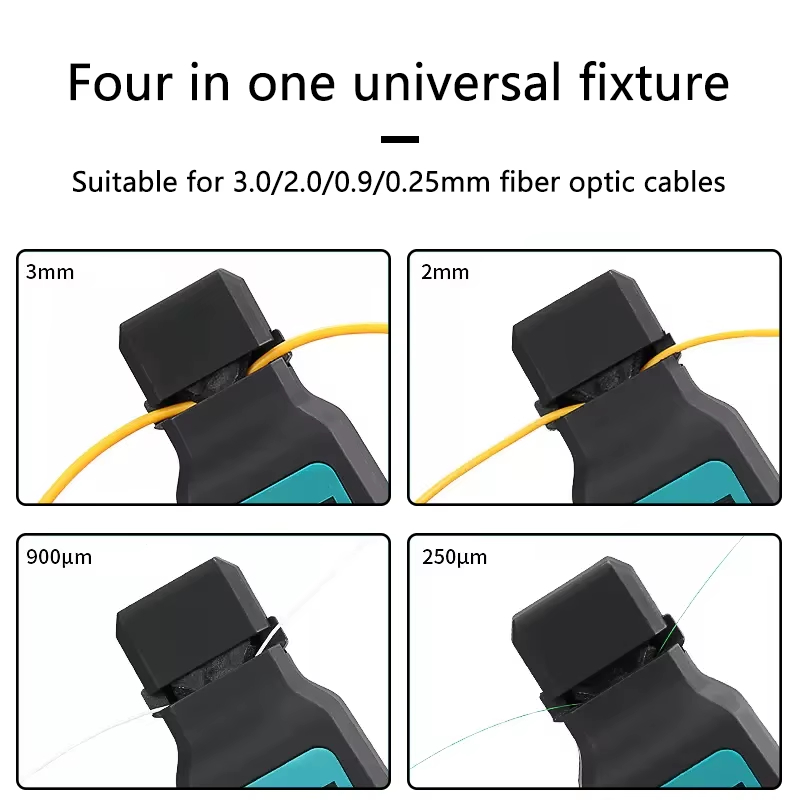

6.Four in one universal fixture,no need to replace during on-line test Clamp to ensure no damage to the fiber.

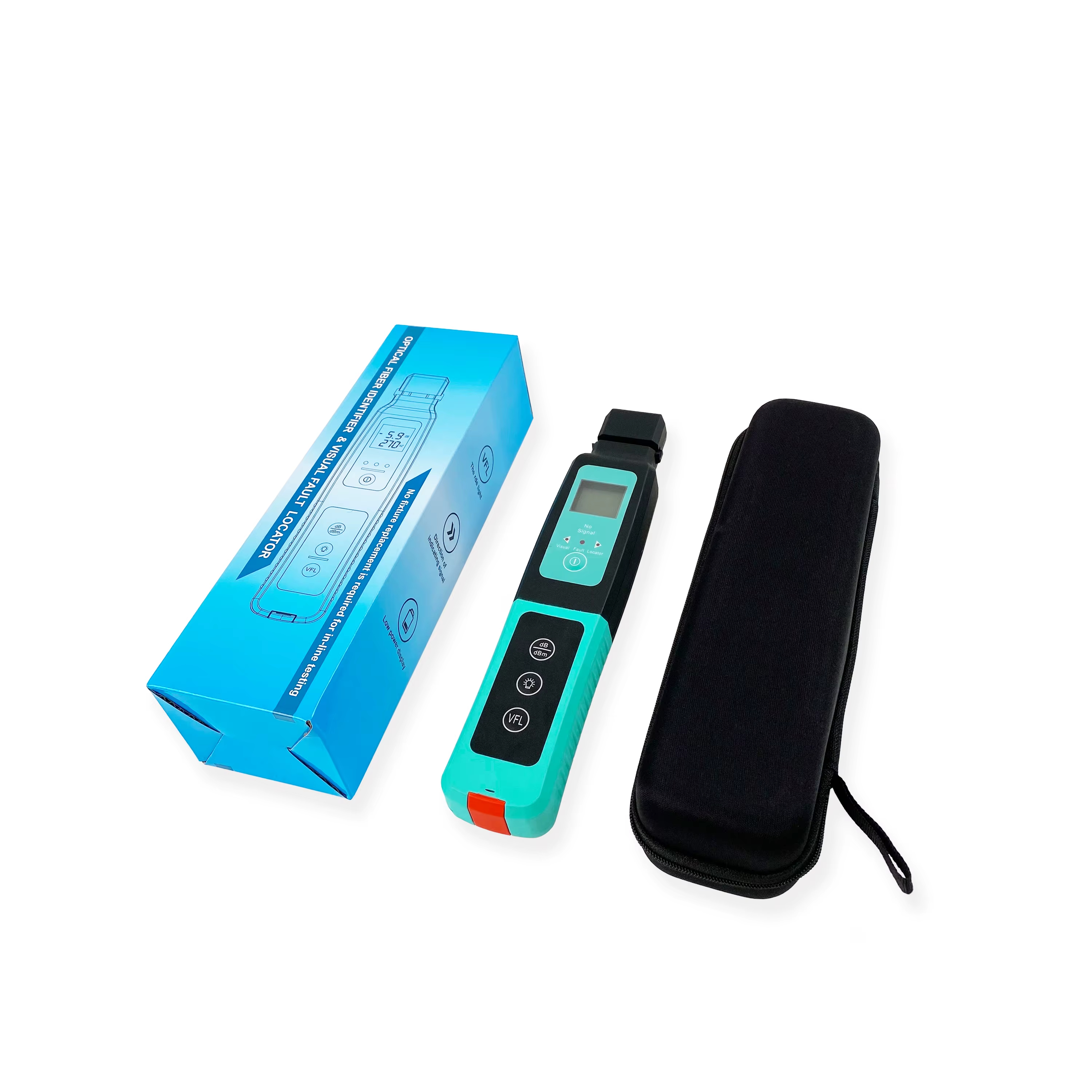

Product list
|
OPTICAL FIBERIDENTIFIER & VISUAL FAULT LOCATOR |
1PCS |
|
5 batteries (2) |
1PCS |
|
Nylon hard package |
1PCS |
|
instructions |
1PCS |
|
Product certificate |
1PCS |
Technical parameter
|
Type |
parameter |
|
Wavelength range |
800-1700nm |
|
Signal recognition type |
CW,270Hz±5%,1kHz±5%2kHz±5% |
|
Detector type |
φ1mm InGaAs2 pcs |
|
Adaptive fiber type |
General purpose φ0.25(bare fiber), φ0.9,φ2.0,φ3.0 optical fiber jumper |
|
Signal direction |
LED indicator light left and right direction indication |
|
Optical power reading range |
-40dBm—+10dBm |
|
Signal frequency range |
270Hz,1kHz,2kHz |
