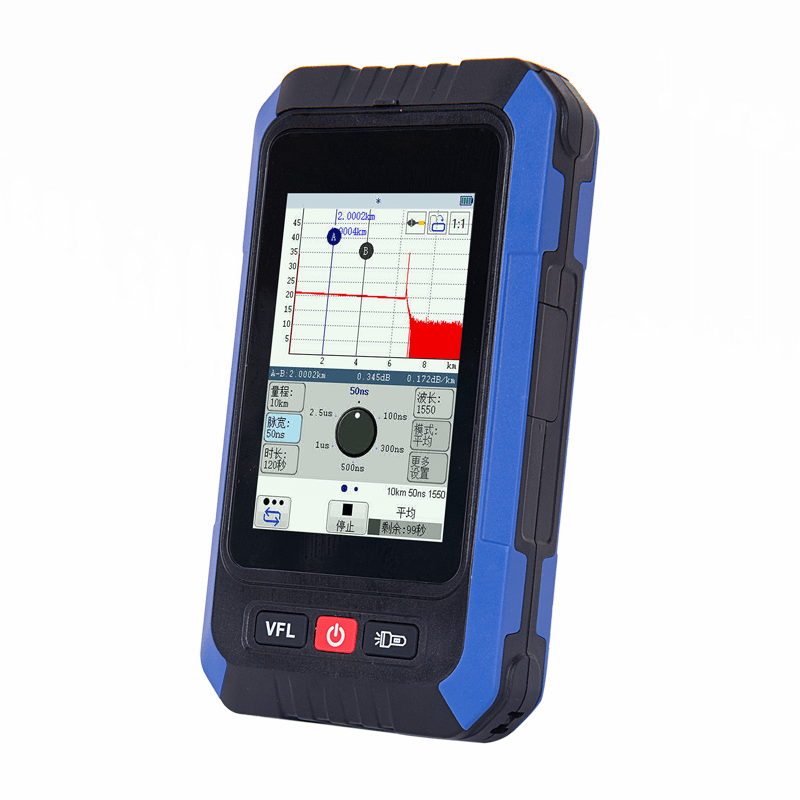

3.5inch capacitance touch screen, gesture operation, curve scaling, easy to handle
OTDR supports multiple testing operations and can change testing parameters in real-time during the testing process
SR6000D OTDR supports dual wavelength testing function, which can intuitively observe the macro bending point of the optical cable
SR6000F-15 and SR6000F-16 can test optical fibers with optical signals
The Palm OTDR series is an all-in-one intelligent comprehensive instrument that integrates optical time domain refractometer, optical power meter, light source, visual light source, event map, network cable testing (optional), and lighting. Multiple models meet the testing needs of different fiber optic networks; The high-speed operating system ensures real-time and smooth user operation; It is compact, lightweight, easy to carry, sturdy and durable, especially suitable for harsh outdoor working environments.
Functional features:
u Accurate, fast, reliable, easy to operate, intelligent and multifunctional integrated,
u 3.5inch capacitance touch screen, gesture operation, curve scaling, easy to handle
u OTDR supports multiple testing operations and can change testing parameters in real-time during the testing process
u SR6000D OTDR supports dual wavelength testing function, which can intuitively observe the macro bending point of the optical cable
u SR6000F-15 and SR6000F-16 can test optical fibers with optical signals
u OTDR has dual protection of software and hardware, and is not afraid of optical testing
u Support saving. sor files and screenshots. jpg
u The problem of the event map (optical eye) circuit is visualized and the fault is clear at a glance
u Intelligent file management function, which can provide comparison of two test traces.
u Has Chinese saving and automatic file naming function
u Different data transfers can be selected: USB data transfer and connecting to a computer to transfer data

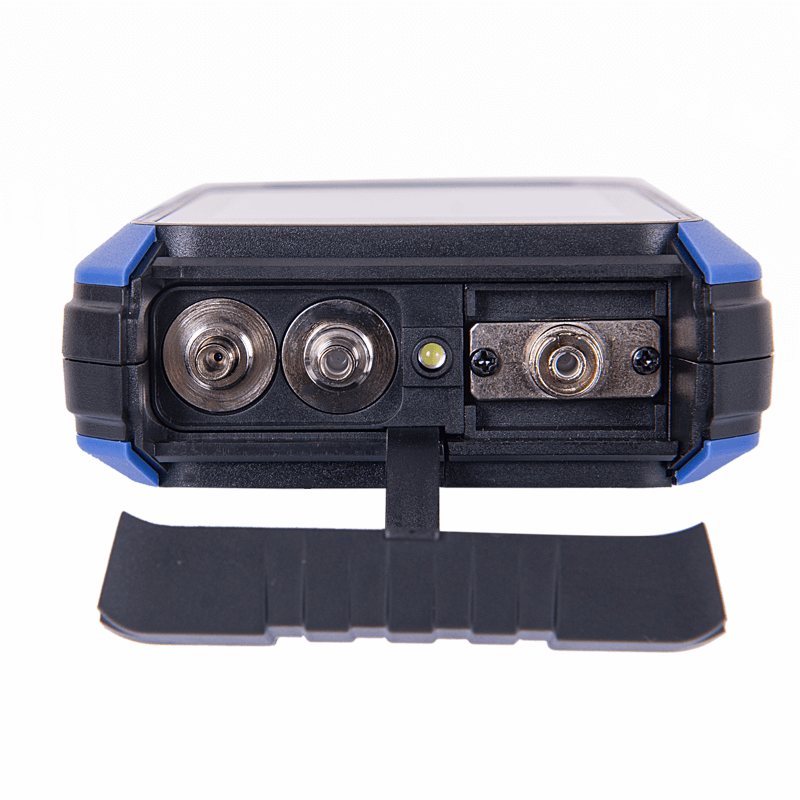

u OTDR flange FC/SC/LC replaceable
u Remote instrument software upgrade available
■ Technical specification
|
Model |
S6000 ② |
S6000D ② |
S6000S-15 ② |
S6000K-16② |
|||
|
OTDR |
|||||||
|
Central wavelength (±20nm) |
1550 |
1310/1550 |
1550 |
1610 |
|||
|
Dynamic range (dB) ③ |
20 |
22/20 |
20 |
20 |
|||
|
Live test |
Not support |
Not support |
Support |
Support |
|||
|
Pulse width |
5ns 、10ns、20ns、50ns、100ns、 300ns、1.0ms、 2.5ms、10ms、 20ms |
||||||
|
Event dead zone (m) ④ |
2 |
||||||
|
Attenuation dead zone (m) ④ |
8 |
||||||
|
Distance range (Km) |
0.5 to80 |
||||||
|
Loss measurement accuracy |
±0.05dB/ dB |
||||||
|
Memory capacity |
500 |
||||||
|
Optical fiber type |
SMF(single mode fiber) |
||||||
|
LCD size |
3.5 inch |
||||||
|
Standard optical interface |
FC/SC/ST/LC option |
||||||
|
Visual fault locator * |
Light source (optional)⑦ |
||||||
|
Wavelength |
650nm±20 |
Wavelength（nm） |
1310/1550 |
||||
|
Output power |
> 10mW |
Output power(dBm) |
≥-7 |
||||
|
Standard connector |
FC/UPC |
|
|
||||
|
OPM (optional) ⑧ |
|||||||
|
Model |
A |
B |
|||||
|
Detector type |
InGaAs |
||||||
|
Detection range(dBm) |
-70∽+6 |
-50∽+26 |
|||||
|
Calibration wavelength(nm) |
850、980、1300、1310、1490、1550、1625 |
||||||
|
Linearity |
±5% |
||||||
|
Others |
|||||||
|
Battery |
Lithium battery |
Dimension |
(LxWxH) 145mm×78mm×30mm |
||||
|
Continuous working hours * |
>10 hours (according to Bellcore TR-NWT-001138) |
Weight |
0.3Kg |
||||
Note: ① Unless otherwise specified, all specifications are applicable to connectors with FC/PC at 23 °C ± 2 °C (73.4 °F ± 3.8 °F). ② Common configuration. ③ Typical dynamic range of max pulse at SNR = 1 and 3-minute average. ④ Typical dead zone with 10ns pulse and single-mode reflectivity lower than –50dB. ⑤Typical dead zone with 10ns pulse and single-mode reflectivity lower than –50dB.⑥Excluding the uncertainty resulted from optical refractive index. ⑦ The same interface as OTDR.
