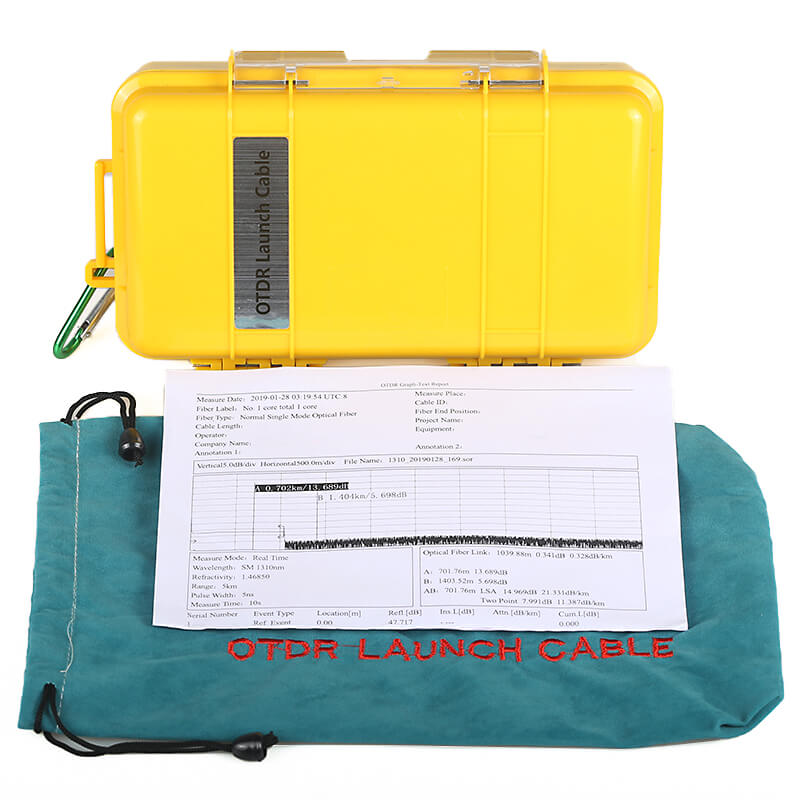

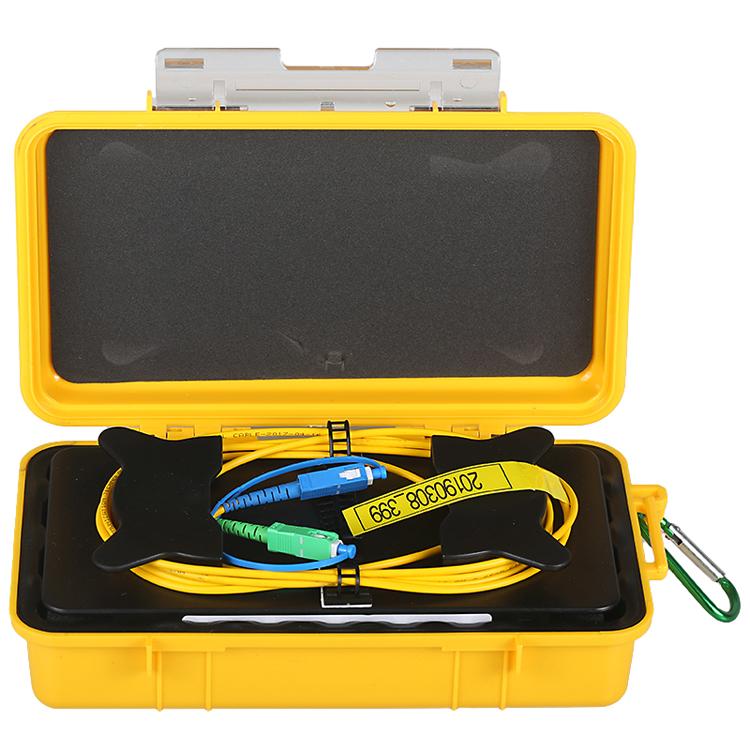

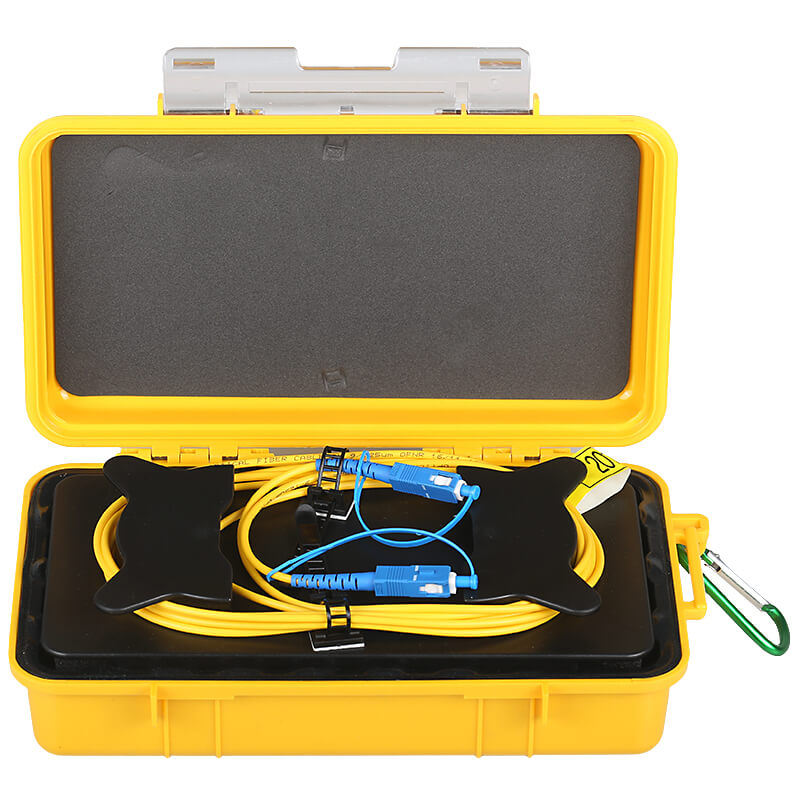

OTDR Launch Cable box is mainly used to make up the dead zone of OTDR test. There are no fusion joints in the center of optical fiber, small size, light weight and easy to carry. The loss is less than or equal to 0.5dBm/km. It has excellent sealing properties, waterproof and anti-fouling. Come with a plastic box to conveniently store the OTDR launch cable.
Features
Use as a pulse suppressor, OTDR launch box, delay line, product demonstrations, training, calibration.
Solid internal housing protects spool and leads
Leads wrap in the same direction for quick, easy access and storage.
Karabiner Clip included allows unit to be attached to equipment straps, belts and rack mounts. Light weight, easy to carry, small/low profile design portable for field use.
Measures only 6.25" x 1.25"
Single-mode 9/125, Multimode 62.5/125, Multimode 50/125 OM2 and Multimode 50/125 OM3 Custom length configurations available.
Specification
|
Dimensions(mm) |
Diameter 6.25 ", Height 1.25" |
|
Fiber Length(m) |
500m, 1km, 2km |
|
Fiber Types |
Single-mode 9/125, Multi-mode 62.5/125, Multi-mode 50/125 OM2, Multi-mode 50/125 OM3 |
|
Lead Length |
2 Meters, 3mm buffer |
|
Insertion Loss |
<0.3dB/km typical, <0.5dB/km max |
|
Back Reflection (RL) |
UPC: <-50dB, APC: <-60dB |
|
Mating Reliability |
<.2dB |
|
Storage Temp. |
-40° to +85° C |
|
Humidity |
0 to 95%, non-condensing |
|
Weight |
5 oz. |
