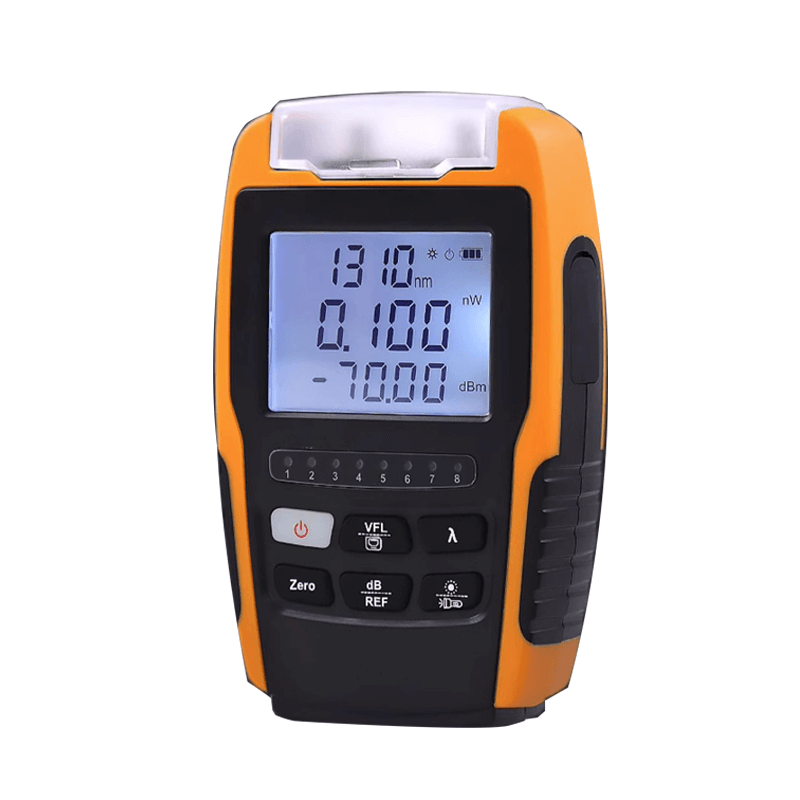

SVP21 Series Optical Power Meter (Opm) and Visual Fault Locator (VFL)
SVP21 series are all-in-one machines integrating the functions of OPM, VFL, network cable sequencer and light developed by our company independently according to the demand of market and customers. With features of both domestic and foreign optical testers, the product is widely applied in optical cable construction and maintenance, optical fiber communication, optical fiber sensing, optical CATV, network cable fault test and other fields and provides accurate and stable support to installation, operation and maintenance of fiber-optic network.
Introduction:
SVP21 series are all-in-one machines integrating the functions of OPM, VFL, network cable sequencer and light developed by our company independently according to the demand of market and customers. With features of both domestic and foreign optical testers, the product is widely applied in optical cable construction and maintenance, optical fiber communication, optical fiber sensing, optical CATV, network cable fault test and other fields and provides accurate and stable support to installation, operation and maintenance of fiber-optic network.
Features:
Integrating the functions of OPM, VFL, network cable sequencer and light.
Wavelength: 850/980/1300/1310/1490/1550/1577/1625nm
Super-large power measurement range
Simultaneous display of linear and nonlinear indexes
Wavelength memory function
The red light is always on and flashes
RJ45 test
Superbright LED supports working in the darkness
Auto power-off
Backlight on/off
Auto backlight off
User calibration
User zero setting
Charged by power bank, computer, etc.
Support interfaces of SC, FC and ST
Specification:
|
Model
|
SVP21-V10A
|
SVP21-V20A
|
SVP21-V30A
|
SVP21-V10B
|
SVP21-V20B
|
SVP21-V30B
|
|
OPM
|
|
Power measurement range (dBm)
|
-70~+6
|
-70~+6
|
-70~+6
|
-50~+26
|
-50~+26
|
-50~+26
|
|
Probe type
|
InGaAs
|
|
Wavelength range (nm)*1
|
800~1700
|
|
Standard wavelength (nm)
|
850/980/1300/1310/1490/1550/1577/1625
|
|
Uncertainty *3
|
±0.15dB
|
|
Display resolution
|
0.001dB
|
|
VFL
|
|
Output power
|
10mW
|
20mW
|
30mW
|
10mW
|
20mW
|
30mW
|
|
RJ45 test
|
Support
|
|
General parameters
|
|
Working temperature (℃)
|
-10~+60
|
|
Storage temperature (℃)
|
-25~+70
|
|
Auto power-off time (min)
|
10
|
|
Lithium battery capacity
|
700mAH
|
|
Power supply
|
Lithium battery
|
|
Charing Port
|
Type-C
|
|
Weight (g)
|
150
|
|
Overall dimension (mm)
|
118×72×32
|
