Wavelength: 850/980/1300/1310/1490/1550/1577/1625nm
Super-large power measurement range
Simultaneous display of linear and nonlinear indexes
Wavelength memory function
Dark environment
Auto power-off
Backlight on/off
Auto backlight off
User calibration
User zero setting
Charged by power bank, computer, etc
Support interfaces of SC, FC and ST.
Charging life: longer than 120 hours
Introduction:

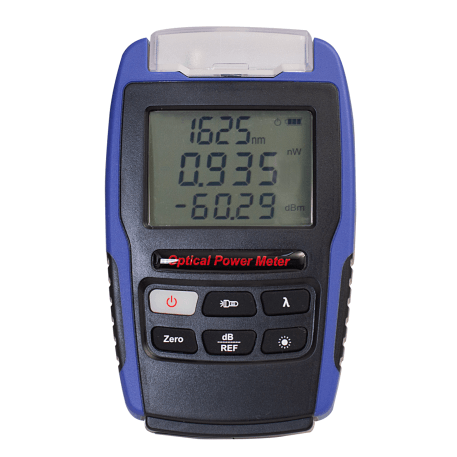

Optical power meter of SR201 series is a new product independently developed by the company according to the market and customer needs. With features of both domestic and foreign optical testers, the product is widely applied in optical cable construction and maintenance, optical fiber communication, optical fiber sensing, optical CATV, network cable fault test and other fields and provides accurate and stable support to installation, operation and maintenance of fiber-optic network.
Features:
Wavelength: 850/980/1300/1310/1490/1550/1577/1625nm
Super-large power measurement range
Simultaneous display of linear and nonlinear indexes
Wavelength memory function
Dark environment
Auto power-off
Backlight on/off
Auto backlight off
User calibration
User zero setting
Charged by power bank, computer, etc
Support interfaces of SC, FC and ST.
Charging life: longer than 120 hours
Specification:
|
Specifications and models |
SR201-AD |
SR201-AL |
SR201-BD |
SR201-BL |
|
Power measurement range (dBm) |
-70∽+6 |
-50∽+26 |
||
|
Probe type |
InGaAs |
|||
|
Wavelength range (nm)*1 |
800~1700 |
|||
|
Standard wavelength (nm) |
850/980/1300/1310/1490/1550/1577/1625 |
|||
|
Uncertainty*3 |
±0.15dB |
|||
|
Display resolution |
0.001dB |
|||
|
Power supply |
Dry cell |
Lithium battery |
Dry cell |
Lithium battery |
|
General parameters |
||||
|
Working temperature (℃) |
-10∽+60 |
|||
|
Storage temperature (℃) |
-25~+70 |
|||
|
Auto power-off time (min) |
10 |
|||
|
Weight (g) |
150 |
|||
|
Overall dimension (mm) |
118×72×32 |
|||
