Provides 1~4 output wavelengths which can be optional according to customer’s needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display supports night operation
Compact size and decent appearance
Large LCD, easy operation
Alternative 10 minutes Auto-off function conserving battery life
Features
· Provides 1~4 output wavelengths which can be optional according to customer’s needs
· CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
· High stability of the output power
· Stable output wavelength
· Backlight LCD display supports night operation
· Compact size and decent appearance
· Large LCD, easy operation
· Alternative 10 minutes Auto-off function conserving battery life
Specifications
|
Type |
SR3109 |
||||
|
Wavelengths(nm) |
650 |
1310/1550 |
850/1300 |
850/1300/1310/1550 |
|
|
Emitter Type |
FP-LD,LED or others please specify |
||||
|
Typical Output Power (dBm) |
0 |
-7dBm for LD, -20dBm for LED |
|||
|
Spectral Width(nm) |
≤10 |
||||
|
Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
||||
|
Modulation Frequencies |
CW,2Hz |
CW,270Hz,1KHz,2KHz |
|||
|
Optical Connector |
FC/ universal adaptor |
FC/PC |
|||
|
Power Supply |
Alkaline Battery(3 AA 1.5V batteries) |
||||
|
Battery Operating Time(hour) |
45 |
||||
|
Operating Temperature(℃) |
-10~+60 |
||||
|
Storage Temperature(℃) |
-25~+70 |
||||
|
Dimension |
23.5*16*8cm |
||||
|
Weight |
0.6kg |
||||
|
Joinwit Recommendation |
|||||
|

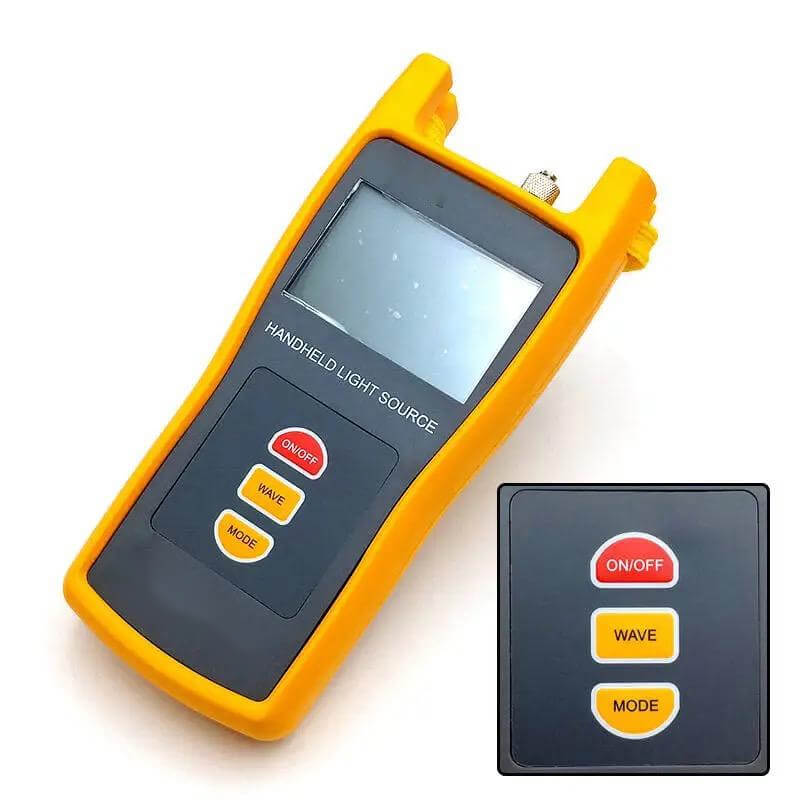

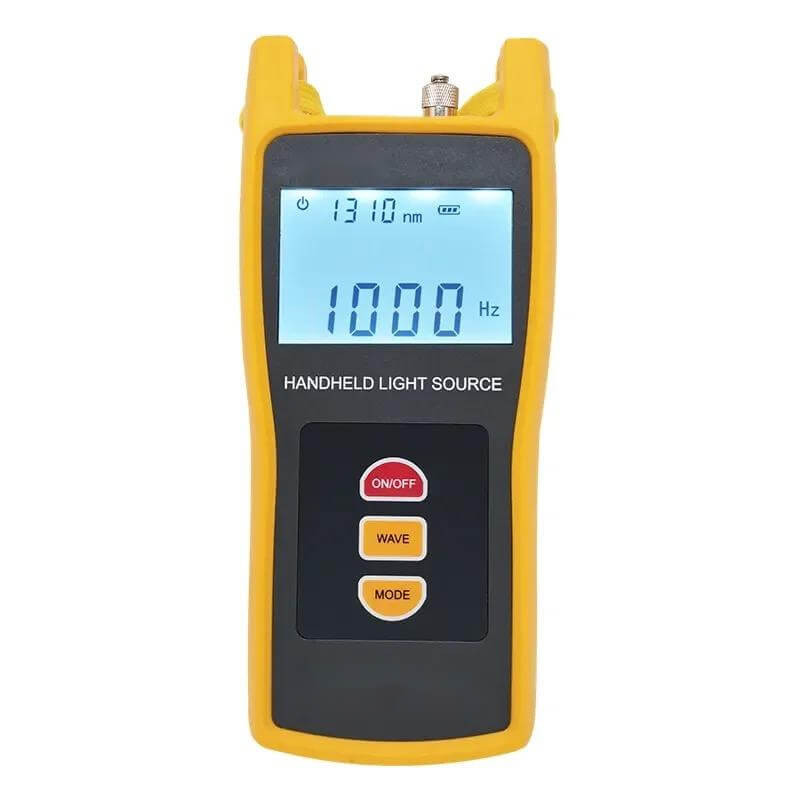

JW3109 Handheld Light Source is designed for optimal use with JW3208 Optical Power Meter for measuring optical loss on both single mode and multi mode fiber cable. |
|||||
This kind Light source can customize 1310/1550/1490nm wavelength model.
