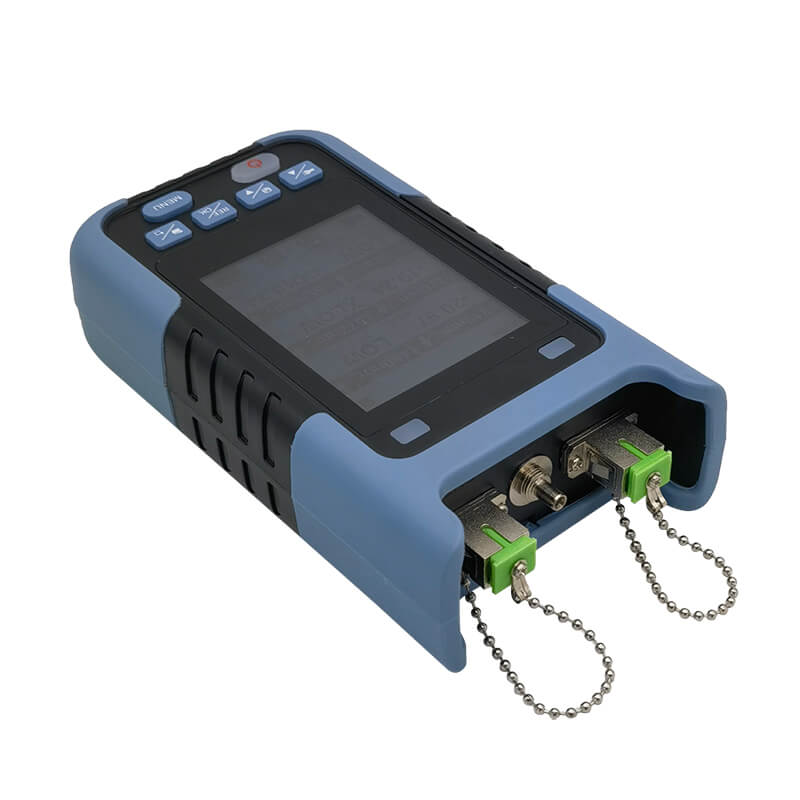

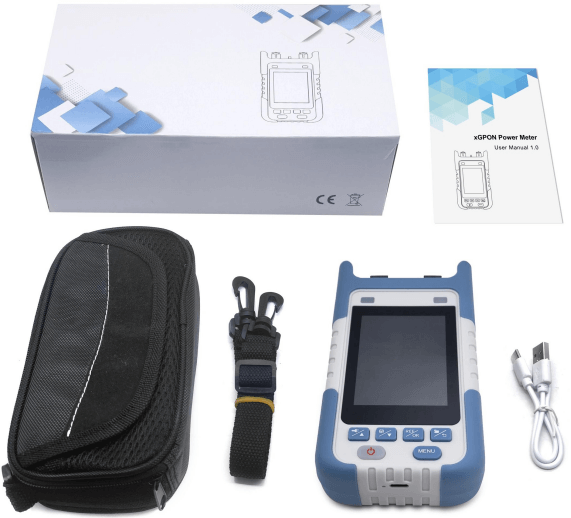

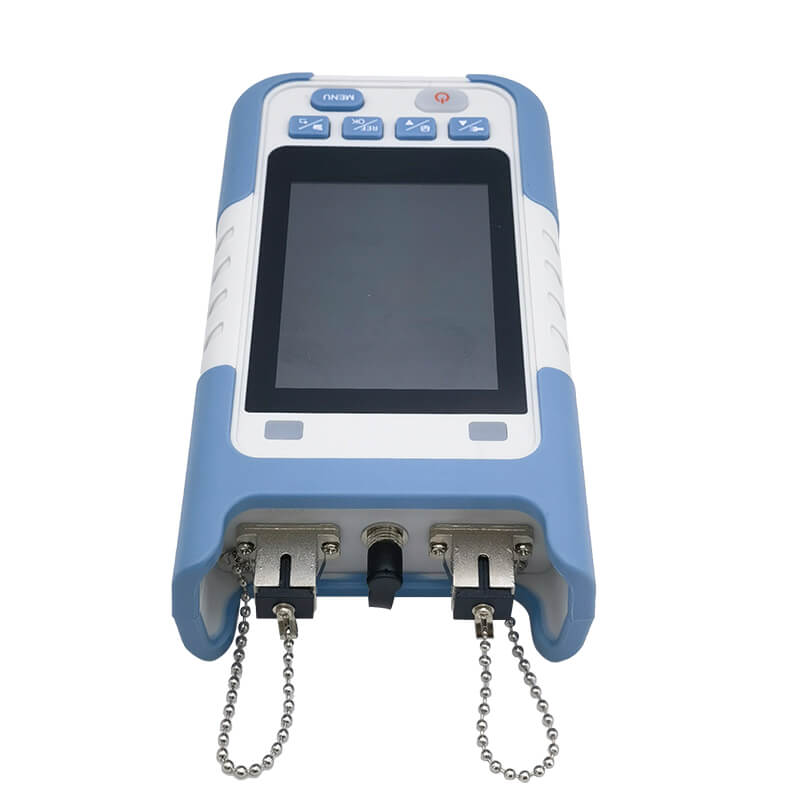

SR583 XGPON Power Meter
It is widely used in 10GEPON/XGPON/XGSPON and RF networks
Depending on the configuration, up to 6 wavelengths of PON system power can be tested simultaneously: 1490nm, 1550nm, 1577nm, 1310nm, 1270nm, 1610nm
Can test 1310nm, 1270nm, 1610nm burst mode uplink wavelength signal
Provides 10 sets of threshold values for operator selection, analysis and display of pass and failure status relative value selection and editing function can save 1000 records
Manually set thresholds, upload data and calibrate wavelengths.
Self-calibration function
Automatic shutdown function
Automatic backlight function
Large capacity lithium battery
Energy-saving design, low-voltage self-test power off

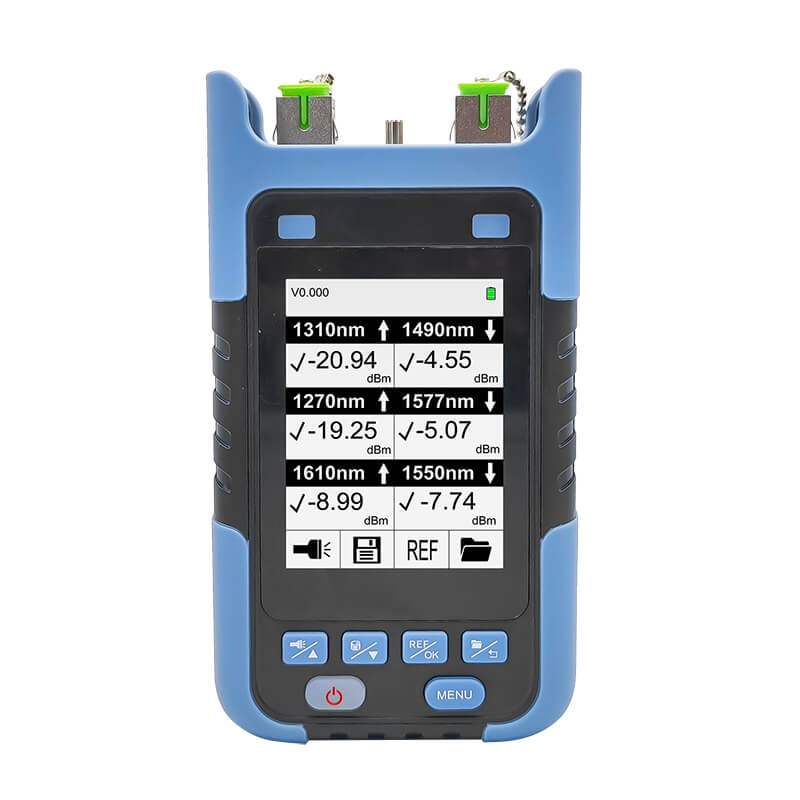

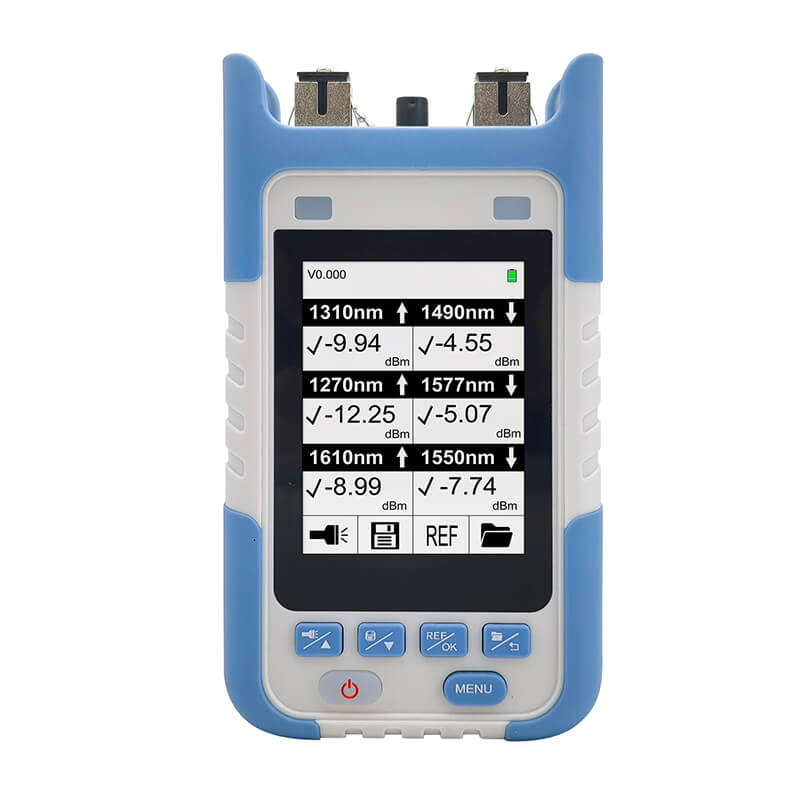

HD screen, clear to read in outdoor sunlight
Features:
◇ It is widely used in 10GEPON/XGPON/XGSPON and RF networks
◇ Depending on the configuration, up to 6 wavelengths of PON system power can be tested simultaneously: 1490nm, 1550nm, 1577nm, 1310nm, 1270nm, 1610nm
◇ Can test 1310nm, 1270nm, 1610nm burst mode uplink wavelength signal
◇ Provides 10 sets of threshold values for operator selection, analysis and display of pass and failure status relative value selection and editing function can save 1000 records
◇ Manually set thresholds, upload data and calibrate wavelengths.
◇ Self-calibration function
◇ Automatic shutdown function
◇ Automatic backlight function
◇ Large capacity lithium battery
◇ Energy-saving design, low-voltage self-test power off
◇ HD screen, clear to read in outdoor sunlight
Specifications
|
Wavelength
（nm）
|
1310
(uplink)
|
1490
(downlink)
|
1550
(downlink)
|
1270
(uplink)
|
1577
(downlink)
|
1610
(uplink)
|
|
Spectral passband
（nm）
|
1290~1330
|
1470~1505
|
1535~1570
|
1260~1280
|
1577±3nm
|
1595~1650
|
|
Range（DBM）
|
-40～+10
|
-45～+10
|
-45～+10
|
-40～+10
|
-45～+10
|
-40～+10
|
|
Isolation@ 1310nm (dB)
|
|
>40
|
>40
|
>40
|
>40
|
>40
|
|
Isolation@149 0nm(dB)
|
>40
|
|
>40
|
>40
|
>40
|
>40
|
|
Isolation@155 0nm(dB)
|
>40
|
>40
|
|
>40
|
>40
|
>35
|
|
Isolation@127 0nm(dB)
|
>40
|
>40
|
>40
|
|
>40
|
>40
|
|
Isolation@157 7nm(dB)
|
>40
|
>40
|
>40
|
>40
|
|
>40
|
|
Isolation@161 0nm(dB)
|
>40
|
>40
|
>40
|
>40
|
>40
|
|
|
Accuracy
|
|
Uncertainty
|
±0.5dB
|
|
Polarization Loss
|
<±0.25dB
|
|
Linear
|
±0.1dB
|
|
Insertion Loss
|
<1.5dB
|
|
Display Resolution
|
0.01dB
|
|
Unit
|
dBm/xW
|
|
LCD
|
320*240，3.2 inch True color LCD screen
|
|
Battery
|
4.2V 2400mAh rechargeable battery
|
|
Battery working time
|
20 hours around
|
|
Operating Temperature
|
0～60℃
|
|
Storage Temperature
|
25～70℃
|
|
Size（mm）
|
155×85×40
|
|
Weight（g）
|
300
|
Model:
SR583-2, 1490/1577nm
SR583-3, 1310/1490/1550nm
SR583-4, 1270/1310/1490/1577nm
SR583-5, 1270/1310/1490/1550/1577nm
SR583-6, 1270/1310/1490/1550/1577/1610nm
